HC121-TS8CR-Z
2MP LightHunter Bullet IP Camera, 4 IR LEDs up to 50m, IP67, MicroSD Slot, License Plate Recognition, Varifocal 4.7-47mm lens
Description
Uniview’s HC121@TS8CR-Z is a camera built for one purpose: to capture license plates. It has four powerful IR LEDs, allowing plate detection up to 165ft at night. In addition, its 2MP starlight optical sensor allows for crystal-clear video at 60fps. The sensor’s high dynamic range allows it to practically ignore car headlights, ensuring you capture license plates during day and night.

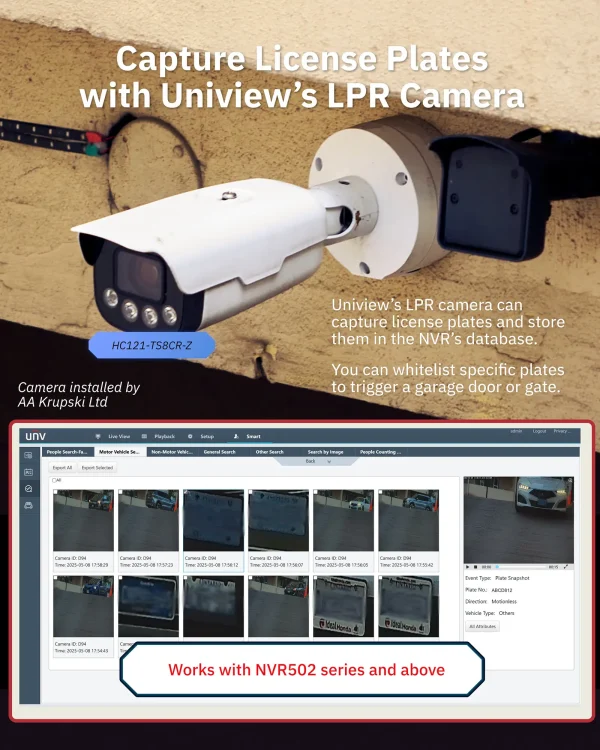

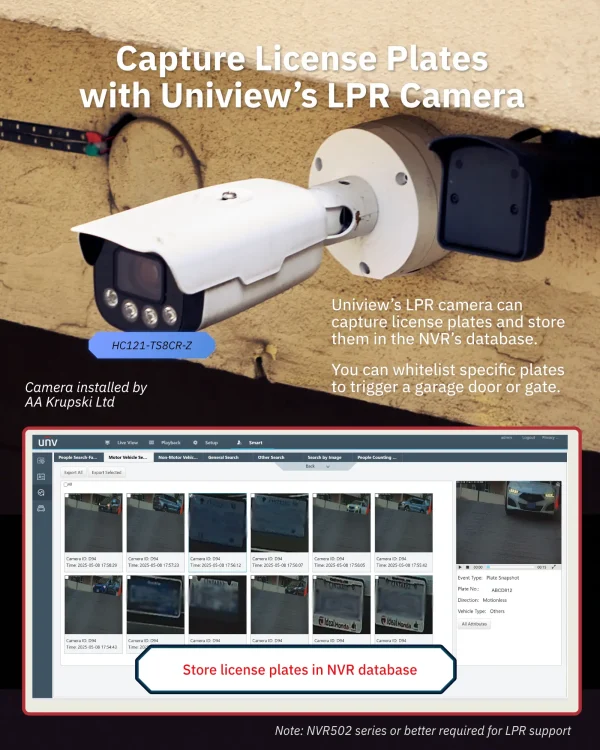

The camera has a built-in LPR (license plate recognition) algorithm, allowing the camera to read and store plate information in plain text. This information can be used to configure whitelists and blacklists or to search for when a specific plate came into the area.
Uniview LPR works best with the following Uniview NVR models:
- NVR502-08B-P8 | NVR502-16B-P16
- NVR504-16B-P16 | NVR504-32B-P16
- NVR508-32E-R | NVR508-64E-R
- NVR516-128
- NVR824-128R | NVR824-256R
These NVRs support plate search, allowing you to perform VCA search by license plate number.
Features – 2MP ANPR Bullet Camera (LPR / License Plate Recognition)
- 2MP industrial quality sensor, 1920*1080 video image resolution
- Motorized zoom lens, flexible adjustment of focus range according to the scene, easy installation
- H.265 Compression
- Built-in vehicle & license plate recognition algorithm can recognize standard license plates of multiple countries.
- Recognizes vehicle body colors and characteristics (daytime)
- Supports blacklist and whitelist configuration
- IP67, IK10
Specification
| Camera | Description |
| Sensor | 1/2.8” 2MP CMOS |
| Focal length | 4.7 to 47mm, motorized zoom |
| Shutter | Auto/Manual, range: 1/25 to 1/100000 s |
| Minimum illumination | 0.001lux (F1.6) |
| Image | Description |
| Image collection format | 1080P@25 (default), 1080P@30, 1080P@50, 1080P@60 |
| Resolution | Main stream: 1080P (default), 720P, D1 Sub stream: 720P (default), D1, 2CIF, CIF Third stream: D1 (default), 2CIF, CIF |
| Frame rate | 60, 50, 30, 25 (default), 22, 20, 18, 16, 15, 12.5, 10, 8, 6, 5, 4, 3, 2, 1 |
| Video compression | H.264 (default), H.265 |
| ROI | Supports up to 8 regions |
| Video OSD | Supports 8 overlay areas and allows contents including date, time, date&time, zoom ratio, custom contents |
| Image OSD | Supports 8 overlay areas and allows contents including time, license plate number, device ID, camera ID, allowlist, image authentication ID, custom contents (3 items), location |
| Smart | Description |
| Application scenario | Vehicle speed ≤30km/h Supports simultaneous application to entry/exit scenes |
| Vehicle detection mode | Video (default) or inductive loop |
| Capture vehicle head only | Support |
| License plate number recognition | Supports recognition of license plates with numbers and letters by default |
| List configuration | Supports allowlist and blocklist configuration, each list allows 20,000 items Supports import, export, add, and delete operations |
| Barrier opening policy | Open barrier only for the recognized vehicles Open barrier for all vehicles Open barrier only for vehicles on the allowlist Open barrier for vehicles not on the blocklist Configurable Boolean output ID |
| Storage | Description |
| Edge storage | Supports ANR with a Micro SD card, up to 128GB |
| Structure | Description |
| Illumination | Built-in integrated illumination module, including 4 IR LEDs, 50m illumination distance, automatic on/off control |
| Sunshield | Long sunshield |
| Bracket | 3-axis mounting bracket |
| Junction box | The camera comes with a junction box for storing tail cable |
| Interface | Description |
| Network interface | 1 × 10M/100M RJ45 |
| Serial port | 1 × RS485 |
| Boolean output | 1 relay output, withstand voltage: AC 125V/0.3A, DC 30V/1A |
| Boolean input | 2 inputs, supports level/Boolean, with max level up to DC 5V |
| Audio interface | 1 × audio input, 1 × audio output |
| Storage interface | 1 × Micro SD card slot |
| General | Description |
| Power supply | DC12V + 25% – 10% |
| Max. power consumption: 20W | |
| Supports PoE (802.3at, class 4) | |
| Dimensions (L×W×H) | 386mm x 126mm x 130mm |
| Weight | 2kg |
| Operating environment | -40℃ to 60℃, ≤90% RH |
| Ingress protection | IP67, IK10 |
