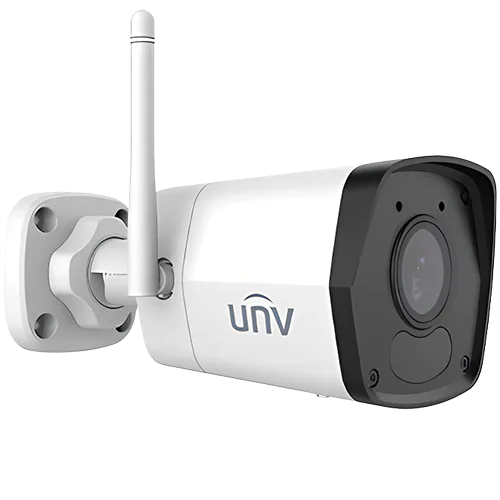

IPC2122LB-AF28WK-G
2MP Wireless Mini-bullet IP Camera, IR up to 30m, IP67, MicroSD Slot, Fixed 2.8mm lens
Description
Uniview’s IPC2122LB-AF28WK-G is a 2MP wireless security camera. With a powerful WiFi antenna and wide 101.1° FoV, you can ensure reliable coverage with this IP camera. Additionally, this WiFi camera has a built-in microphone, providing the ability to record audio. Also, a built-in microSD card slot allows for standalone storage (up to 128 GB).
Uniview wireless cameras operate in 2.4GHz mode, allowing them to connect with your typical home router. After connecting the camera to your WiFi network, you’ll be able to view it from your smartphone via Uniview’s P2P cloud service, through the local network, or from a DDNS service by port forwarding. You can also add this camera to a Uniview wireless NVR from the wireless kits (2ch KIT | 4ch KIT).
Note: If your wifi signal is weak, you will experience issues such as occasional disconnects, low framerate, or complete loss of connectivity. You can alleviate some of these issues by lowering the bitrate of the camera or purchasing a more powerful router.
Features – 2MP HD WIFI Bullet Network Camera
- High quality image with 2MP, 1/2.9″CMOS sensor
- 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
- Ultra 265, H.265, H.264, MJPEG
- Built-in Mic
- Smart IR, up to 30m (98ft) IR distance
- Supports 128 G Micro SD card
- IP67 protection
- 3-Axis
Specification
| IPC2122LB-AF28WK-G | IPC2122LB-AF40WK-G | ||||||||||
| Camera | |||||||||||
| Sensor | 1/2.9″, 2.0 megapixel, progressive scan, CMOS | ||||||||||
| Minimum Illumination | Colour: 0.01 lux (F2.0 AGC ON) 0 lux with IR on |
||||||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||||||
| Shutter | Auto/Manual, 1~1/100000 s | ||||||||||
| Adjustment Angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | ||||||||
| S/N | >52dB | ||||||||||
| WDR | DWDR | ||||||||||
| Lens | |||||||||||
| Lens Type | 2.8mm@F2.0 | 4.0mm@F2.0 | |||||||||
| Iris | Fixed | ||||||||||
| Field of View (H) | 101.1° | 83.7° | |||||||||
| Field of View (V) | 55.0° | 44.6° | |||||||||
| Field of View (D) | 111.0° | 89.1° | |||||||||
| DORI | |||||||||||
| DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | ||||||
| 2.8mm | 45.0 | 18.0 | 9.0 | 4.5 | |||||||
| 4.0mm | 64.3 | 25.7 | 12.9 | 6.4 | |||||||
| Illuminator | |||||||||||
| IR Range | Up to 30m (98 ft) IR range | ||||||||||
| Wavelength | 850nm | ||||||||||
| IR On/Off Control | Auto/Manual | ||||||||||
| Video | |||||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||||||
| H.264 code profile | Baseline profile, Main profile, High profile | ||||||||||
| Frame Rate | Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
||||||||||
| Video Bit Rate | 128 Kbps~6 Mbps | ||||||||||
| U-code | Support | ||||||||||
| OSD | Up to 4 OSDs | ||||||||||
| Privacy Mask | Up to 4 areas | ||||||||||
| ROI | Up to 8 areas | ||||||||||
| Video stream | Dual streams | ||||||||||
| Image | |||||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||||||
| Digital noise reduction | 2D/3D DNR | ||||||||||
| Smart IR | Support | ||||||||||
| Flip | Normal/Vertical/Horizontal/180° | ||||||||||
| Dewarping | N/A | ||||||||||
| HLC | Support | ||||||||||
| BLC | Support | ||||||||||
| Defog | Digital Defog | ||||||||||
| Events | |||||||||||
| Basic Detection | Human body detection, Motion detection, tampering alarm, audio detection | ||||||||||
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication | ||||||||||
| Audio | |||||||||||
| Audio Compression | G.711U, G.711A | ||||||||||
| Audio Bitrate | 64 Kbps | ||||||||||
| Two-way Audio | N/A | ||||||||||
| Suppression | Support | ||||||||||
| Sampling Rate | 8KHZ | ||||||||||
| Storage | |||||||||||
| Edge Storage | Micro SD, up to 128GB | ||||||||||
| Network Storage | ANR,NAS(NFS) | ||||||||||
| Network | |||||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP | ||||||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API , SDK | ||||||||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||||||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||||||||
| Client | EZStation EZView EZLive |
||||||||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||||||||
| Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | |||||||||||
| Wi-Fi | |||||||||||
| Wireless Standards | IEEE802.11b/g/n | ||||||||||
| Frequency Range | 2.4 GHz ~ 2.4835 GHz | ||||||||||
| Wireless Range | Up to 130 m (The performance varies based on actual environment) | ||||||||||
| Channel Bandwidth | 20 MHz Support | ||||||||||
| Modulation Mode | 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM/HT |
||||||||||
| Security | 64/128-bit WEP, WPA-PSK/WPA2-PSK | ||||||||||
| Transmit Power | 802.11b: 17±1.5dBm @11Mbps 802.11g: 14±1.5dBm @ 54Mbps 802.11n: 12.5±1.5dBm @150Mbps |
||||||||||
| Receive Sensitivity | 802.11b: -90dBm @11Mbps (Typical) 802.11g: -75dBm @54Mbps (Typical) 802.11n: -74dBm @150Mbps (Typical) |
||||||||||
| Transmission Rate | 802.11b: 11Mbps 802.11g: 54Mbps 802.11n: up to 150Mbps |
||||||||||
| Interface | |||||||||||
| Audio I/O | N/A | ||||||||||
| Alarm I/O | N/A | ||||||||||
| Serial Port | N/A | ||||||||||
| Built-in Mic | Support | ||||||||||
| Built-in Speaker | N/A | ||||||||||
| WIFI | Support | ||||||||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||||||||
| Video Output | N/A | ||||||||||
| Certification | |||||||||||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
||||||||||
| RF | FCC ID (FCC CFR 47 part15 C) CE RED (EN 62311: 2008, EN 300 328 V2.2.2(2019-07), EN 301489-1 V2.2.3(2019-11), ETSI EN 301 489-17 V3.2.4(2020-09)) |
||||||||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
||||||||||
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006) | ||||||||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) | ||||||||||
| General | |||||||||||
| Power | DC 12V±25% | ||||||||||
| Power consumption: Max 4.0 W | |||||||||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||||||||
| Dimensions (L × W × H) | 172 × 76 ×72 mm (6.8” × 3” × 2.8”) | ||||||||||
| Weight | 0.25 kg (0.55 lb) | ||||||||||
| Material | Metal + Plastic | ||||||||||
| Working Environment | -30°C ~ +60°C (-22°F ~ 140°F), Humidity:≤95% RH(non-condensing) | ||||||||||
| Strorage Environment | -30°C ~ +60°C (-22°F ~ 140°F), Humidity:≤95% RH(non-condensing) | ||||||||||
| Surge Protection | 4KV | ||||||||||
| Reset Button | Support | ||||||||||
