IPC2124SR3-DPF28-G, IPC2124SR3-DPF40-G

IPC2124SR3-DPF28-G

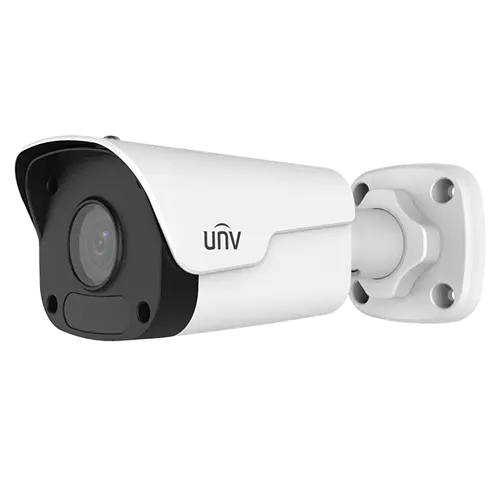

4MP Mini-bullet IP Camera, IR up to 30m, IP67, MicroSD Slot, Fixed 2.8mm lens

Discontinued: Replaced by updated model IPC2124SR3-ADF28KM-G



Login for pricing
Category: Tags: , ,

Description

Uniview IPC2124SR3-DPF28-G is an excellent choice for commercial security. This mini-bullet camera is great for providing sharp video surveillance of a scene. Effective indoors and outdoors due to IP67 weather resistance. Additionally, built-in IR provides illumination up to 30m in very dark environments.

The 2.8mm lens provides a wider field of view with a slightly lower pixel density.

Features – 4MP SD Card Mini Fixed Bullet Network Camera

  • 1/3″ progressive scan, CMOS
  • Up to 2592×1520 resolution,20fps
  • 2.8mm/4.0mm optional
  • Built-in Mic
  • Smart IR, up to 30m IR distance
  • Ultra 265, H.265,Corridor Mode,2D/3D DNR,ROI,ONVIF
  • DC12V, PoE.Wide voltage range of ±25%
  • IP67

Specification

  IPC2124SR3-DPF28-G IPC2124SR3-DPF40-G
Camera
Sensor 1/3″, 4.0 megapixel, progressive scan, CMOS
Lens 2.8mm@F2.0 4.0mm@F2.0
Angle of View (H) 78.9° 49.9°
Angle of View (V) 39.6° 27°
Angle of View (O) 97.1° 61.4°
Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360°
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Colour: 0.03Lux (F2.0, AGC ON)
0Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
S/N >52dB
IR Range Up to 30m (98ft) IR range
wavelength 850nm
IR On/Off Control Auto/Manual
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Frame Rate Main Stream: 4MP (2592*1520), Max 20fps; 4MP (2560*1440), Max 25fps; 3MP (2048*1520), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
Video Bit Rate 128 Kbps~16 Mbps
9:16 Corridor Mode Supported
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR Support
Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping Support
HLC Support
BLC Support
Audio
Audio Compression G.711
Suppression Supported
Sampling Rate 8KHZ
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration ONVIF (Profile S, Profile T), API
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Alarm I/O 1/1
Built-in Mic Supported
Network 1 RJ45 10M/100M Base-TX Ethernet
Certifications
Certifications CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 6W
Dimensions (L × W × H) 157.3 × 62.4 × 63mm (6.2” × 2.5” × 2.5”)
Net Weight 0.45kg (0.99lb)
Material Metal
Working Environment -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
surge protection 2KV
Ingress Protection IP67
Reset Button Supported
