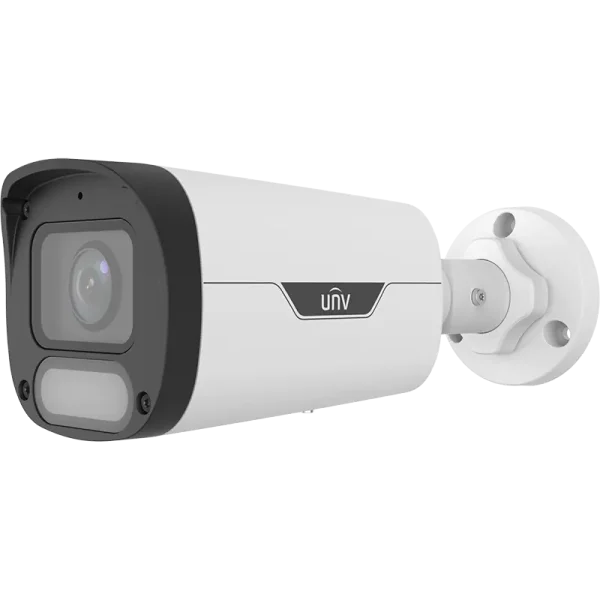

Uniview 8MP OwlView mini-bullet camera with Wise-ISP technology and a white LED

IPC2318SR-ADF28KM-WP

The OwlView series has incredible low-light performance due to exclusive Wise-ISP technology from Uniview. This 8MP mini-bullet has a white LED, built-in microphone, and a MicroSD card slot. The 2.8mm lens allows it to cover a wide angle of 111°.

Login for pricing
Category: Tags: , , , , ,

Description

This 8MP OwlView mini-bullet camera is capable of extremely low-light video surveillance. Wise-ISP technology helps optimize image quality by enhancing brightness, restoring colour, and reducing noise. This camera uses Uniview’s 5th generation NightView technology and it is unlike any other camera on the market.

To learn more about Wise-ISP cameras, you can read our article on the topic.

Features – 8MP ColorHunter Wise-ISP Warm Light Bullet Network Camera

  • High quality image with 8MP, 1/1.8″CMOS sensor and F1.0 large aperture lens
  • 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
  • Ultra 265, H.265, H.264, MJPEG
  • Colorhunter with Wise-ISP technology ensures 24-hour full-color images
  • 120dB true WDR technology enables clear image in strong light scene
  • Support 9:16 Corridor Mode
  • Built-in Mic
  • White Light, up to 30m warm light distance
  • Supports 512 GB Micro SD card
  • IP67 protection
  • Support PoE power supply
  • 3-Axis

A banner showing Uniview's Wise-ISP camera with functions such as brightness enhancement and noise reduction.

Specification

IPC2318SR-ADF28KM-WP IPC2318SR-ADF40KM-WP
Camera
Max Resolution 8MP
Sensor 1/1.8″ CMOS
Min. Illumination Colour: 0.0003 lux (F1.0, AGC ON)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment Angle Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°
S/N >52dB
WDR 120dB
Lens
Focal Length 2.8 mm 4.0 mm
Iris Type Fixed
Iris F1.0
Field of View (H) 111.0° 94.2°
Field of View (V) 63.0° 51.0°
Field of View (D) 131.0° 111.7°
Lens Type Fixed
DORI
DORI Distance (Lens) 2.8mm 4.0mm
DORI Distance (Detect) 63.0 (206.7ft) 90.0(295.3ft)
DORI Distance (Observe) 25.2 (82.7ft) 36.0(118.1ft)
DORI Distance (Recognize) 12.6 (41.3ft) 18.0(59.1ft)
DORI Distance (Identify) 6.3 (20.7ft) 9.0(29.5ft)
Illuminator
Supplemental Light Warm Light
Illumination Distance (Warm Light) 30 m (98.4 ft)
Light On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
Sub Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps
Video Bit Rate 128 Kbps ~ 6144 Kbps
U-code Support
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Video Stream Dual Streams
White Balance Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
Digital Noise Reduction 2D/3D DNR
Smart Illumination Support
Flip Normal, Flip Vertical, Flip Horizontal, 180°, 90°Clockwise, 90°Anti-clockwise
Dewarping N/A
HLC Support
BLC Support
Defog Digital Defog
Image Stabilization N/A
Events
Basic Detection Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection
General Function Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication
Intelligent
Smart Intrusion Prevention (Lite) Intrusion, Crossline Detection (Both detection are based on human body and vehicle detection)
Audio
Audio Compression G.711U, G.711A
Audio Bitrate 64 Kbps
Two-way Audio N/A
Suppression Support
Sampling Rate 8 KHz
Storage
Edge Storage Micro SD, up to 512 GB
Network Storage ANR, NAS (NFS)
Network
Protocols IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible Integration ONVIF (Profile S, Profile G, Profile T),
API, SDK
User/Host Up to 32 users, 2 user levels: administrator and common user
Security Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client UNV-Link, UNV-Link Pro, EZStation
Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above, Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
Audio I/O N/A
Alarm I/O N/A
Serial Port N/A
Built-in Mic Support
Built-in Speaker N/A
WIFI N/A
Network 1 x RJ45 10M/100M Base-TX Ethernet
Video Output N/A
Certification
EMC CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)
FCC (FCC 47 CFR part15 B)
Safety CE LVD (EN 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection IP67 (IEC 60529)
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power Consumption Max 3.9W
Power Interface Ø 5.5 mm coaxial power plug
Dimensions 206 × 73 × 73mm (8.1” × 2.9” × 2.9”) (L x W x H)
Weight 0.48kg(1.06lb)
Material Metal
Working Environment -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing)
Storage Environment -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing)
Surge Protection 4KV
Reset Button Support
Web Client Language 13 Languages
English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian
