Uniview 2MP metal dome camera with a built-in microphone

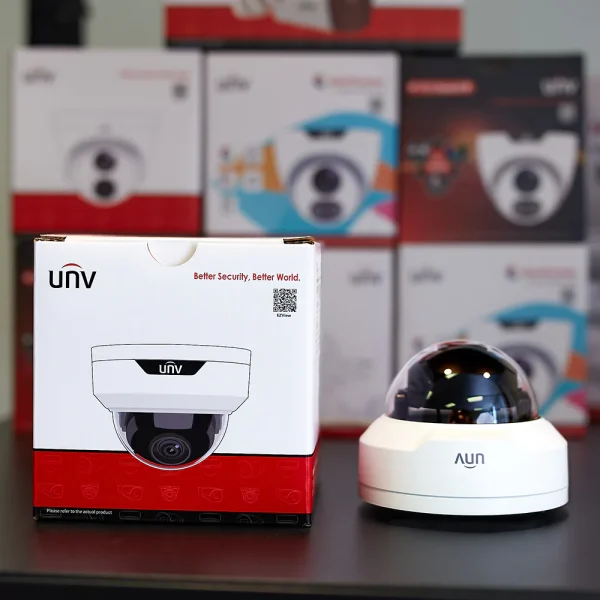

Uniview 4MP dome camera on a black shelf with retail box on the left side
  • Uniview 2MP metal dome camera with a built-in microphone
  • Uniview 4MP dome camera on a black shelf with retail box on the left side

    • IPC324SR-ADF28KM-H

    4MP Dome IP Camera, IR up to 30m, IP67 & IK10, MicroSD Slot, Built-in Microphone, Fixed 2.8mm lens

    Login for pricing
    Category: Tags: , , ,

    Description

    Uniview IPC324SR-ADF28KM-H is a professional security camera. This dome camera is great for providing sharp video surveillance of any scene at an affordable price. Effective indoors and outdoors due to IP67 weather resistance. Additionally, built-in IR provides illumination up to 30m in very dark environments.

    The 2.8mm lens provides a wider field of view with a slightly lower pixel density. This camera also has a built-in microphone for recording sound from the environment.

    Features – 4MP HD Vandal-resistant IR Fixed Dome Network Camera

    • High quality image with 4MP, 1/3″CMOS sensor
    • 4MP (2688*1520)@ 30/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
    • Ultra 265, H.265, H.264, MJPEG
    • Easystar technology ensures high image quality in low illumination environment
    • 120dB true WDR technology enables clear image in strong light scene
    • Support 9:16 Corridor Mode
    • Built‑in Mic
    • Smart IR, up to 30m (98ft) IR distance
    • Supports 512 G Micro SD card
    • IK10 vandal resistant
    • IP67 protection
    • Support PoE power supply
    • 3‑Axis

    Specification

    Camera Description
    Max Resolution 4MP
    Sensor 1/3.0″ CMOS
    Min. Illumination Colour: 0.003 lux ( F1.6, AGC ON)
    0 Lux with IR on
    Day/Night IR‑cut filter with auto switch (ICR)
    Shutter Auto/Manual, 1 ~ 1/100000s
    Adjustment Angle Pan: 8° ~ 360°, Tilt: 0° ~ 68°, Rotate: 10° ~ 360°
    S/N >52dB
    WDR 120dB
    Lens Description
    Focal Length IPC324SR-ADF28KM-H:2.8 mm IPC324SR-ADF40KM-H:4.0 mm
    Iris Type Fixed
    Iris F1.6
    Field of View (H) IPC324SR-ADF28KM-H:97.0° IPC324SR-ADF40KM-H:79.0°
    Field of View (V) IPC324SR-ADF28KM-H:52.2° IPC324SR-ADF40KM-H:42.3°
    Field of View (D) IPC324SR-ADF28KM-H:107.5° IPC324SR-ADF40KM-H:85.1°
    DORI Description
    DORI Distance(Lens) IPC324SR-ADF28KM-H:2.8mm IPC324SR-ADF40KM-H:4.0mm
    DORI Distance(Detect) IPC324SR-ADF28KM-H:63.0m(206.7t) IPC324SR-ADF40KM-H:90.0m(295.3ft)
    DORI Distance(Observe) IPC324SR-ADF28KM-H:25.2m(82.7ft) IPC324SR-ADF40KM-H:36.0m(118.1ft)
    DORI Distance(Recognize) IPC324SR-ADF28KM-H:12.6m(41.3ft) IPC324SR-ADF40KM-H:18.0m(59.1ft)
    DORI Distance(Identify) IPC324SR-ADF28KM-H:6.3m(20.7ft) IPC324SR-ADF40KM-H:9.0m(29.5ft)
    Illuminator Description
    Supplemental Light IR
    Illumination Distance(IR) 30 m (98.4 ft)
    Wavelength 850 nm
    IR On/Off Control Auto/Manual
    Video Description
    Video Compression Ultra 265; H.265; H.264; MJPEG
    H.264 Code Profile Baseline profile, Main profile, High profile
    Frame Rate Main Stream: 4MP (2688*1520), Max 30fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
    Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps;
    Video Bit Rate 128 Kbps ~ 6144 Kbps
    U-code Support
    OSD Up to 4 OSDs
    Privacy Mask Up to 4 areas
    ROI Up to 8 areas
    Video Stream Dual Streams
    Image Description
    White Balance Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2
    Digital Noise Reduction 2D/3D DNR
    Smart IR Support
    Flip Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti‑clockwise
    Dewarping N/A
    HLC Support
    BLC Support
    Defog Digital Defog
    Events Description
    Basic Detection Cross Line (based on Human Body Detection); Intrusion (based on Human Body Detection); Motion Detection; Ultra Motion Detection; Tampering Alarm; Audio Detection
    General Function Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication
    Audio Description
    Audio Compression G.711U; G.711A
    Audio Bitrate 64 Kbps
    Two-way Audio N/A
    Suppression Support
    Sampling Rate 8KHZ
    Storage Description
    Edge Storage Micro SD, up to 512 GB
    Network Storage ANR; NAS (NFS)
    Network Description
    Protocols IPv4; IGMP; ICMP; ARP; TCP; UDP; DHCP; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; QoS; SSL/TLS; 802.1x; SNMP
    Compatible Integration ONVIF (Profile S, Profile G, Profile T); API; SDK
    User/Host Up to 32 users. 3 user levels: administrator, common user and operator
    Security Password Protection; Strong Password; HTTPS Encryption; Export Operation Logs; Basic and Digest Authentication for RTSP; Digest Authentication for HTTP; TLS 1.2; WSSE and Digest Authentication for ONVIF
    Client UNV‑Link;  UNV‑Link Pro; EZStation
    Web Browser Plug‑in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug‑in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
    Interface Description
    Audio I/O N/A
    Alarm I/O N/A
    Serial Port N/A
    Built-in Mic Support
    Built-in Speaker N/A
    WIFI N/A
    Network 1 x RJ45 10M/100M Base‑TX Ethernet
    Video Output N/A
    Certification Description
    EMC CE‑EMC (EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035)
    FCC (FCC 47 CFR part15 B)
    Safety CE LVD (EN 62368‑1)
    UL/CUL (UL 62368‑1, CAN/CSA C22.2 No. 62368‑1)
    Environment CE‑RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);
    Protection IP67 (IEC 60529)
    IK10 (IEC 62262)
    General Description
    Power DC 12V±25%, PoE (IEEE 802.3af)
    Power consumption: Max 4.4W
    Power Interface Ø 5.5mm coaxial power plug
    Dimensions Φ111 x 83mm (Ø4.4” x 3.3”)
    Weight 0.35kg (0.77lb)
    Material Metal
    Working Environment ‑30 °C ~ 60 °C (‑22 °F ~ 140 °F), Humidity: ≤95% RH (non‑condensing)
    Storage Environment ‑30 °C ~ 60 °C (‑22 °F ~ 140 °F), Humidity: ≤95% RH (non‑condensing)
    Surge Protection 4KV
    Reset Button Support
    Web Client Language 13 Languages
    English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian
