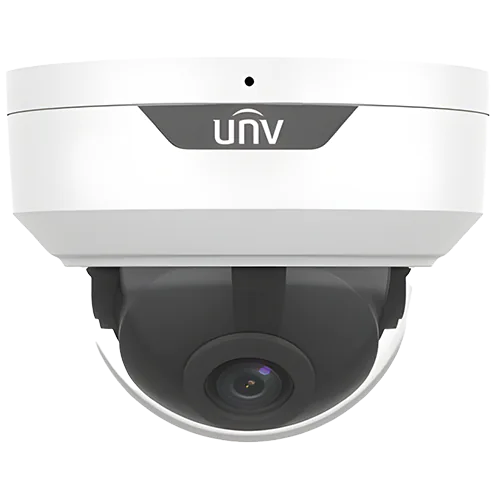

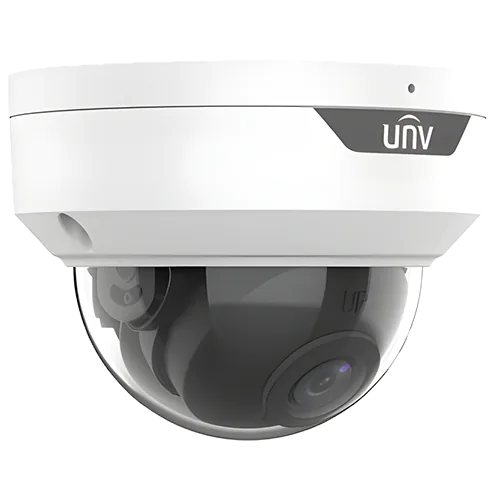

IPC328SB-ADF40K-I0
8MP Dome IP Camera, IR up to 30m, IP67 + IK10, MicroSD Slot, Built-in Mic, Fixed 4.0mm lens
Description
Uniview IPC328SB-ADF40K-I0 is an excellent choice for commercial security. At full 8MP resolution, this camera will provide the most details of a scene with sufficient lighting. It has a built-in microphone for capturing audio in the scene, providing valuable information during playback. Additionally, built-in IR provides illumination up to 30m in very dark environments.
The 4.0mm lens provides a slightly narrower field of view with a higher pixel density.
Features – 8MP HD IR Fixed Dome Network Camera
- High quality image with 8MP, 1/2.7″CMOS sensor
- 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
- Ultra 265, H.265, H.264, MJPEG
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Alarm:1 in/1 out, Audio: 1 in/1 out
- Built-in Mic
- Smart IR, up to 30m (98ft) IR distance
- Supports 256 G Micro SD card
- IK10 vandal resistant
- IP67 protection
Specification
| IPC328SB-ADF28K-I0 | IPC328SB-ADF40K-I0 | |||||||
| Camera | ||||||||
| Sensor | 1/2.7″, 8.0 megapixel, progressive scan, CMOS | |||||||
| Lens | 2.8mm@F1.6 | 4.0mm@F1.6 | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||
| 2.8 | 84.0 | 33.6 | 16.8 | 8.4 | ||||
| 4.0 | 120.0 | 48.0 | 24.0 | 12.0 | ||||
| Angle of View (H) | 112.9° | 91.2° | ||||||
| Angle of View (V) | 51.9° | 47.9° | ||||||
| Angle of View (O) | 121.2° | 95.9° | ||||||
| Adjustment angle | Pan: 3° ~ 360° | Tilt: 0° ~ 68° | Rotate: 3° ~ 360° | |||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
| Minimum Illumination | Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR |
|||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||
| S/N | >56dB | |||||||
| IR Range | Up to 30m (98ft) IR range | |||||||
| Wavelength | 850nm | |||||||
| IR On/Off Control | Auto/Manual | |||||||
| Defog | Digital Defog | |||||||
| WDR | 120dB | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| H.264 code profile | Baseline profile, Main profile, High profile | |||||||
| Frame Rate | Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
|||||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||||
| OSD | Up to 8 OSDs | |||||||
| Privacy Mask | Up to 4 areas | |||||||
| ROI | Up to 8 areas | |||||||
| Motion Detection | Up to 4 areas | |||||||
| Image | ||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||||
| Smart IR | Support | |||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||||
| Dewarping | Supported | |||||||
| HLC | Supported | |||||||
| BLC | Supported | |||||||
| Audio | ||||||||
| Audio Compression | G.711 | |||||||
| Two-way audio | Supported | |||||||
| Suppression | Supported | |||||||
| Sampling Rate | 8KHZ | |||||||
| Storage | ||||||||
| Edge Storage | Micro SD, up to 256GB | |||||||
| Network Storage | ANR | |||||||
| Network | ||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, SNMP, HTTPS, SMTP, SSL | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||||||
| Client | EZStation EZView EZLive |
|||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | ||||||||
| Interface | ||||||||
| Audio I/O | Input: impedance 35kΩ; amplitude 2V [p-p] | |||||||
| Output: impedance 600Ω; amplitude 2V [p-p] | ||||||||
| Alarm I/O | 1/1 | |||||||
| Built-in Mic | Supported | |||||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | |||||||
| Certifications | ||||||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
|||||||
| General | ||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||
| Power consumption: Max 6.0W | ||||||||
| Dimensions (Ø x H) | Φ109 x 83mm (Ø4.3” x 3.3”) | |||||||
| Net Weight | 0.43kg ( 0.95lb) | |||||||
| Material | Metal | |||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
| Surge Protection | 4KV | |||||||
| Ingress Protection | IP67 | |||||||
| Vandal Resistant | IK10 | |||||||
| Reset Button | N/A | |||||||
