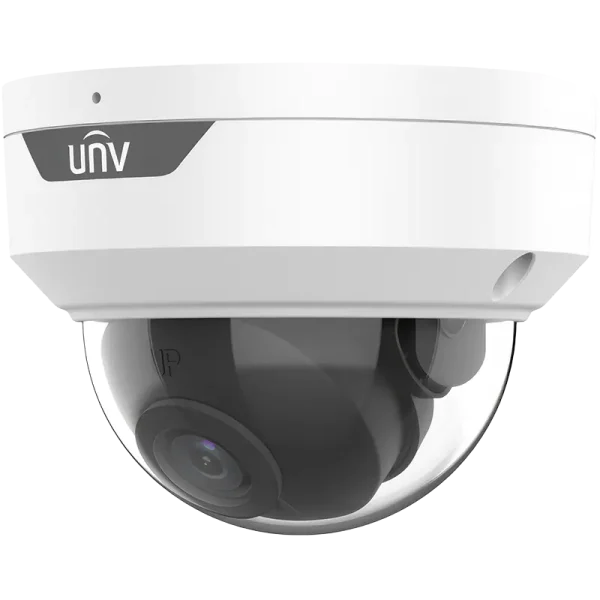

IPC328SR-ADF28KM-H

8MP Dome IP Camera, IR up to 30m, IP67 & IK10, MicroSD Slot, Built-in Mic, Fixed 2.8mm lens (No Advanced AI Detection)

Category: Tags: , , ,

Description

Features – 4K HD Vandal-resistant IR Fixed Dome Network Camera

  • High quality image with 8MP, 1/2.8″CMOS sensor
  • 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
  • Ultra 265, H.265, H.264, MJPEG
  • 120dB true WDR technology enables clear image in strong light scene
  • Support 9:16 Corridor Mode
  • Built‑in Mic
  • Smart IR, up to 30m (98ft) IR distance
  • Supports 512 G Micro SD card
  • IP67 protection & IK10 protection
  • Supports PoE power supply
  • 3‑Axis (tilt, rotate, pan)

Specification

Camera Description
Max Resolution 8MP
Sensor 1/2.8″ CMOS
Min. Illumination Support Easystar: Colour: 0.005 lux ( F1.6, AGC ON)
0 Lux with IR on
Day/Night IR‑cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment Angle Pan: 8° ~ 360°, Tilt: 0° ~ 68°, Rotate: 10° ~ 360°
S/N >52dB
WDR 120dB
Lens Description
Focal Length IPC328SR-ADF28KM-H:2.8 mm IPC328SR-ADF40KM-H:4.0 mm
Iris Type Fixed
Iris F1.6
Field of View (H) IPC328SR-ADF28KM-H:98.7° IPC328SR-ADF40KM-H:83.1°
Field of View (V) IPC328SR-ADF28KM-H:53.9° IPC328SR-ADF40KM-H:48.0°
Field of View (D) IPC328SR-ADF28KM-H:103.6° IPC328SR-ADF40KM-H:86.5°
DORI Description
DORI Distance(Lens) IPC328SR-ADF28KM-H:2.8mm IPC328SR-ADF40KM-H:4.0mm
DORI Distance(Detect) IPC328SR-ADF28KM-H:86.9m(285.1ft) IPC328SR-ADF40KM-H:124.1m(407.3ft)
DORI Distance(Observe) IPC328SR-ADF28KM-H:34.8m(114.0ft) IPC328SR-ADF40KM-H:49.7m(162.9ft)
DORI Distance(Recognize) IPC328SR-ADF28KM-H:17.4m(57.0ft) IPC328SR-ADF40KM-H:24.8m(81.5ft)
DORI Distance(Identify) IPC328SR-ADF28KM-H:8.7m(28.5ft) IPC328SR-ADF40KM-H:12.4m(40.7ft)
Illuminator Description
Supplemental Light IR
Illumination Distance(IR) 30 m (98.4 ft)
Wavelength 850 nm
IR On/Off Control Auto/Manual
Video Description
Video Compression Ultra 265; H.265; H.264; MJPEG
H.264 Code Profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps ~ 16 Mbps
U-code Support
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Video Stream Dual Streams
Image Description
White Balance Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti‑clockwise
Dewarping N/A
HLC Support
BLC Support
Defog Digital Defog
Events Description
Basic Detection Motion Detection; Ultra Motion Detection; Tampering Alarm; Audio Detection; Cross Line (based on Human Body Detection); Intrusion (based on Human Body Detection)
General Function Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP Authentication
Audio Description
Audio Compression G.711U; G.711A
Audio Bitrate 64 Kbps
Two-way Audio N/A
Suppression Support
Sampling Rate 8KHZ
Storage Description
Edge Storage Micro SD, up to 512 GB
Network Storage ANR; NAS (NFS)
Network Description
Protocols IPv4; IGMP; ICMP; ARP; TCP; UDP; DHCP; RTP; RTSP; RTCP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; SSL/TLS; QoS; 802.1x; SNMP
Compatible Integration ONVIF (Profile S, Profile G, Profile T); API; SDK
User/Host Up to 32 users. 3 user levels: administrator, common user and operator
Security Password Protection; Strong Password; HTTPS Encryption; Export Operation Logs; Basic and Digest Authentication for RTSP; Digest Authentication for HTTP; TLS 1.2; WSSE and Digest Authentication for ONVIF
Client UNV‑Link;  UNV‑Link Pro; EZStation
Web Browser Plug‑in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug‑in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface Description
Audio I/O N/A
Alarm I/O N/A
Serial Port N/A
Built-in Mic Support
Built-in Speaker N/A
WIFI N/A
Network 1 x RJ45 10M/100M Base‑TX Ethernet
Video Output N/A
Certification Description
EMC CE‑EMC (EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035)
FCC (FCC 47 CFR part15 B)
Safety CE LVD (EN 62368‑1)
UL/CUL (UL 62368‑1, CAN/CSA C22.2 No. 62368‑1)
Environment CE‑RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);
Protection IP67 (IEC 60529)
IK10 (IEC 62262)
General Description
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 4.9W
Power Interface Ø 5.5mm coaxial power plug
Dimensions Φ111 x 83mm (Ø4.4” x 3.3”)
Weight 0.36kg (0.79lb)
Material Metal
Working Environment ‑30 °C ~ 60 °C (‑22 °F ~ 140 °F), Humidity: ≤95% RH (non‑condensing)
Storage Environment ‑30 °C ~ 60 °C (‑22 °F ~ 140 °F), Humidity: ≤95% RH (non‑condensing)
Surge Protection 4KV
Reset Button Support
Web Client Language 13 Languages
English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian
