IPC3514SR-ADF28KM-WP
The OwlView series has incredible low-light performance due to exclusive Wise-ISP technology from Uniview. This 4MP dome has a built-in microphone and a MicroSD card slot. The 2.8mm lens allows it to cover a wide angle of 110°.
Description

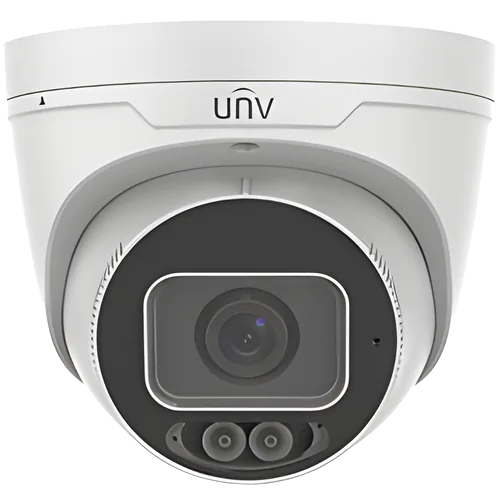

This 4MP OwlView turret camera is capable of extremely low-light video surveillance. Wise-ISP technology helps optimize image quality by enhancing brightness, restoring colour, and reducing noise. This camera uses Uniview’s 5th generation NightView technology and it is unlike any other camera on the market.
Specification
| Camera | Description |
| Resolution | 4MP |
| Sensor | 1/1.8″CMOS |
| Min. Illumination | Colour: 0.0003 lux (F1.0, AGC ON) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment angle | Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360° |
| S/N | >52dB |
| WDR | 120dB |
| Lens | Description |
| Lens type | IPC3624SR-ADF28KM-WP:2.8mm IPC3624SR-ADF40KM-WP:4.0mm |
| Iris Type | Fixed |
| Iris | F1.0 |
| Field of View (H) | IPC3624SR-ADF28KM-WP:110.4° IPC3624SR-ADF40KM-WP:89.4° |
| Field of View (V) | IPC3624SR-ADF28KM-WP:60.5° IPC3624SR-ADF40KM-WP:48.2° |
| Field of View (D) | IPC3624SR-ADF28KM-WP:115.2° IPC3624SR-ADF40KM-WP:94.7° |
| DORI | Description |
| DORI Distance(Lens) | IPC3624SR-ADF28KM-WP:2.8mm IPC3624SR-ADF40KM-WP:4.0mm |
| DORI Distance(Detect) | IPC3624SR-ADF28KM-WP:43.4m(142.5.7ft) IPC3624SR-ADF40KM-WP:62.1(203.6ft) |
| DORI Distance(Observe) | IPC3624SR-ADF28KM-WP:17.4(57.0ft) IPC3624SR-ADF40KM-WP:24.8(81.5ft) |
| DORI Distance(Recognize) | IPC3624SR-ADF28KM-WP:8.7(28.5ft) IPC3624SR-ADF40KM-WP:12.4(40.7ft) |
| DORI Distance(Identify) | IPC3624SR-ADF28KM-WP:4.3(14.3ft) IPC3624SR-ADF40KM-WP:6.2(20.4ft) |
| Illuminator | Description |
| Illumination Distance(Warm Light) | 30m |
| Light On/Off Control | Auto/Manual |
| Video | Description |
| Video Compression | Ultra 265; H.265; H.264; MJPEG |
| H.264 code profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; |
| Video Bit Rate | 128 Kbps~6144Kbps |
| U-code | Support |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Video stream | Dual streams |
| Image | Description |
| White Balance | Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Smart Illumination | Support |
| Flip | Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti‑clockwise |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Events | Description |
| Basic Detection | Motion detection; Ultra motion detection; Tampering alarm; Audio detection; Cross line (based on human body detection); Intrusion (based on human body detection) |
| General Function | Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP Authentication |
| Audio | Description |
| Audio Compression | G.711U; G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | N/A |
| Suppression | Support |
| Sampling Rate | 8KHZ |
| Storage | Description |
| Edge Storage | Micro SD，up to 256 GB |
| Network Storage | ANR; NAS(NFS) |
| Network | Description |
| Protocols | IPv4; IPv6; IGMP; ICMP; ARP; TCP; UDP; DHCP; PPPoE; RTP; RTSP; RTCP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; 802.1x; SNMP; QoS; RTMP; SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T); API; SDK |
| User/Host | Up to 32 users, 2 user levels: administrator and common user |
| Security | Password protection; Strong password; HTTPS encryption; Export operation logs; Basic and digest authentication for RTSP; Digest authentication for HTTP; TLS 1.2; WSSE and digest authentication for ONVIF |
| Client | UNV‑Link; UNV‑Link Pro; EZStation |
| Web Browser | Plug‑in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug‑in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
| Interface | Description |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Serial Port | N/A |
| Built-in Mic | Support |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 * RJ45 10M/100M Base‑TX Ethernet |
| Video Output | N/A |
| Certification | Description |
| EMC | CE‑EMC (EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035) FCC (FCC 47 CFR part15 B) |
| Safety | CE LVD (EN 62368‑1) UL/CUL (UL 62368‑1, CAN/CSA C22.2 No. 62368‑1) |
| Environment | CE‑RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); |
| Protection | IP67 (IEC 60529) |
| General | Description |
| Power | DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 2.8W |
| Power Interface | Ø 5.5mm coaxial power plug |
| Dimensions | Φ118x106mm (Ø4.6” x 4.2”) |
| Weight | 0.48kg(1.06lb) |
| Material | Metal |
| Working Environment | ‑30 °C ~ 60 °C (‑22 °F ~ 140 °F), Humidity: ≤95% RH (non‑condensing) |
| Storage Environment | ‑30 °C ~ 60 °C (‑22 °F ~ 140 °F), Humidity: ≤95% RH (non‑condensing) |
| Surge protection | 4KV |
| Reset button | Support |
| Web Client Language | 13 Languages English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian |
