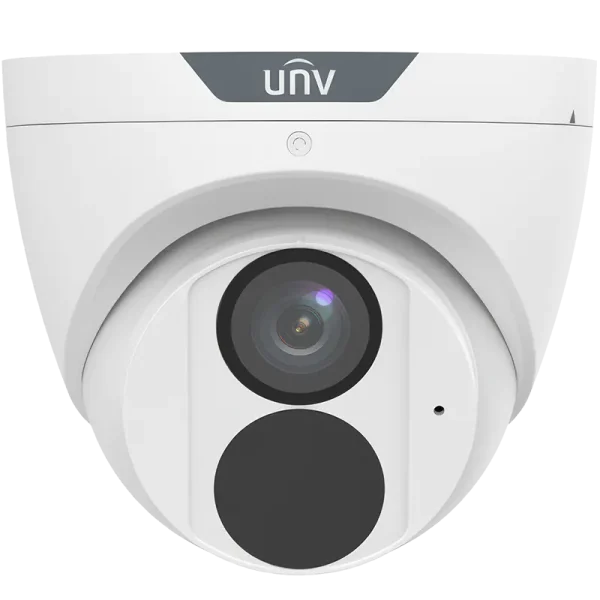

IPC3618SR-ADF28KM-H

8MP Turret IP Camera, IR up to 30m, IP67, MicroSD Slot, Built-in Mic, Fixed 2.8mm lens (No advanced AI detection)

Login for pricing
Category: Tags: , , ,

Description

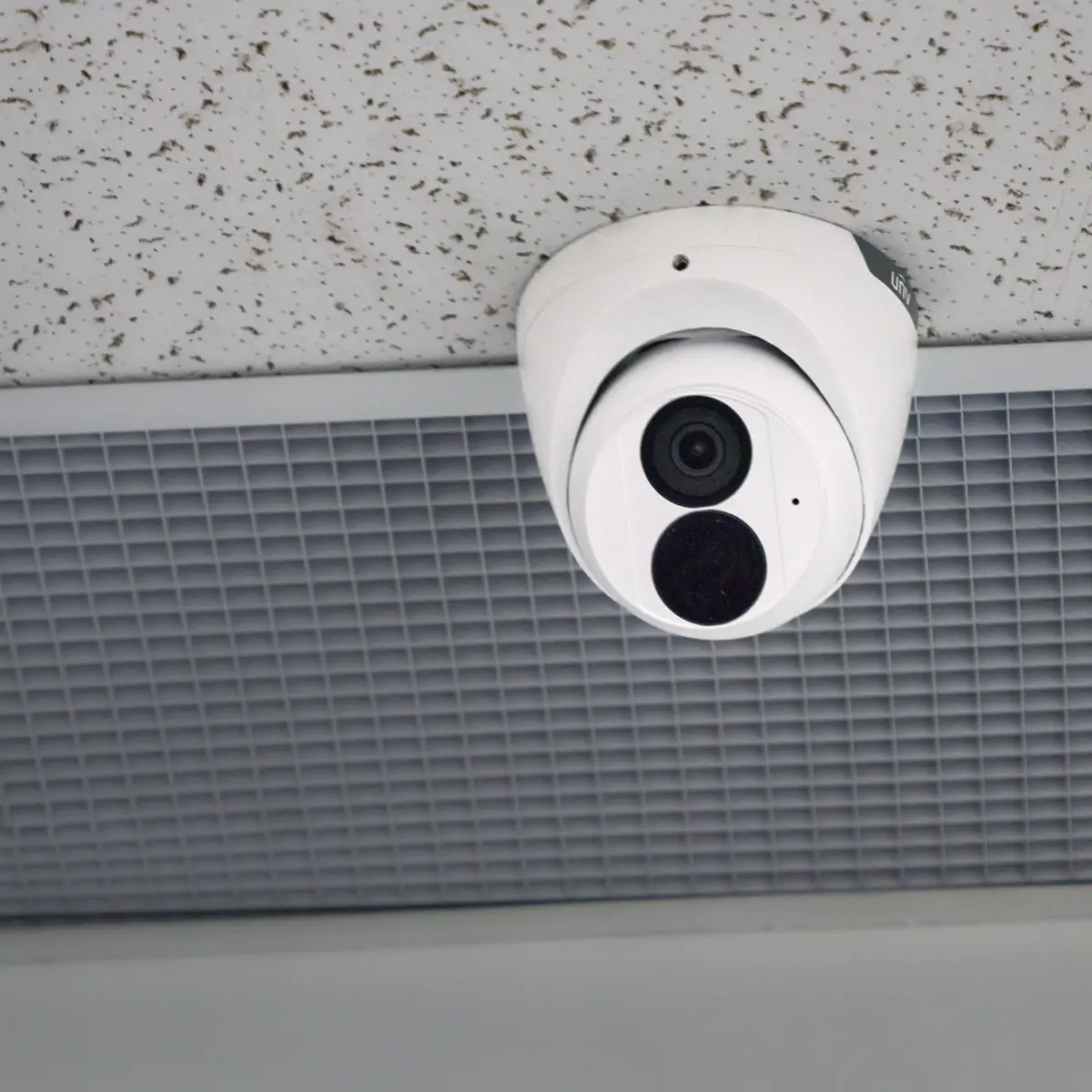

The Uniview 8MP turret is incredibly popular for a few reason. It’s cost-effective, reliable, and performs well in many conditions. It also looks sleek and modern, which makes it suitable for both residential and commercial applications. It has a built-in microphone and IR up to 30m (98ft).

This camera also features human body detection, allowing you to filter events to humans only. This will avoid false alarms caused by rain, leaves, and animals. By avoiding false alarms, you can leave push notifications enabled and search through footage more easily.

This version has a 2.8mm lens which covers a horizontal angle of 112°. This allows you to cover a wider area than a standard 3.6 or 4.0mm lens.

Features – 4K HD IR Fixed Eyeball Network Camera

  • High quality image with 8MP, 1/2.7″CMOS sensor
  • 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
  • Ultra 265, H.265, H.264, MJPEG
  • LightHunter technology ensures high image quality in low illumination environment
  • 120dB true WDR technology enables clear image in strong light scene
  • Support 9:16 Corridor Mode
  • Built-in Mic
  • Smart IR, up to 30m (98ft) IR distance
  • Supports 256 G Micro SD card
  • IP67 protection
  • Support PoE power supply
  • 3-Axis

Specification

Camera Description
Max Resolution 8MP
Sensor 1/2.8″ CMOS
Min. Illumination Support Easystar: Colour: 0.005 lux ( F1.6, AGC ON)
0 Lux with IR on
Day/Night IR‑cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment Angle Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360°
S/N >52dB
WDR 120dB
Lens Description
Focal Length IPC3618SR-ADF28KM-H:2.8 mm IPC3618SR-ADF40KM-H:4.0 mm
Iris Type Fixed
Iris F1.6
Field of View (H) IPC3618SR-ADF28KM-H:98.7° IPC3618SR-ADF40KM-H:83.1°
Field of View (V) IPC3618SR-ADF28KM-H:53.9° IPC3618SR-ADF40KM-H:48.0°
Field of View (D) IPC3618SR-ADF28KM-H:103.6° IPC3618SR-ADF40KM-H:86.5°
DORI Description
DORI Distance(Lens) IPC3618SR-ADF28KM-H:2.8mm IPC3618SR-ADF40KM-H:4.0mm
DORI Distance(Detect) IPC3618SR-ADF28KM-H:86.9m(285.1ft) IPC3618SR-ADF40KM-H:124.1m(407.3ft)
DORI Distance(Observe) IPC3618SR-ADF28KM-H:34.8m(114.0ft) IPC3618SR-ADF40KM-H:49.7m(162.9ft)
DORI Distance(Recognize) IPC3618SR-ADF28KM-H:17.4m(57.0ft) IPC3618SR-ADF40KM-H:24.8m(81.5ft)
DORI Distance(Identify) IPC3618SR-ADF28KM-H:8.7m(28.5ft) IPC3618SR-ADF40KM-H:12.4m(40.7ft)
Illuminator Description
Supplemental Light IR
Illumination Distance(IR) 30 m (98.4 ft)
Wavelength 850 nm
IR On/Off Control Auto/Manual
Video Description
Video Compression Ultra 265; H.265; H.264; MJPEG
H.264 Code Profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps ~ 16 Mbps
U-code Support
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Video Stream Dual Streams
Image Description
White Balance Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti‑clockwise
Dewarping N/A
HLC Support
BLC Support
Defog Digital Defog
Events Description
Basic Detection Motion Detection; Ultra Motion Detection; Tampering Alarm; Audio Detection; Cross Line (based on Human Body Detection); Intrusion (based on Human Body Detection)
General Function Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP Authentication
Audio Description
Audio Compression G.711U; G.711A
Audio Bitrate 64 Kbps
Two-way Audio N/A
Suppression Support
Sampling Rate 8KHZ
Storage Description
Edge Storage Micro SD, up to 512 GB
Network Storage ANR; NAS (NFS)
Network Description
Protocols IPv4; IGMP; ICMP; ARP; TCP; UDP; DHCP; RTP; RTSP; RTCP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; SSL/TLS; QoS; 802.1x; SNMP
Compatible Integration ONVIF (Profile S, Profile G, Profile T); API; SDK
User/Host Up to 32 users. 3 user levels: administrator, common user and operator
Security Password Protection; Strong Password; HTTPS Encryption; Export Operation Logs; Basic and Digest Authentication for RTSP; Digest Authentication for HTTP; TLS 1.2; WSSE and Digest Authentication for ONVIF
Client UNV‑Link;  UNV‑Link Pro; EZStation
Web Browser Plug‑in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug‑in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface Description
Audio I/O N/A
Alarm I/O N/A
Serial Port N/A
Built-in Mic Support
Built-in Speaker N/A
WIFI N/A
Network 1 x RJ45 10M/100M Base‑TX Ethernet
Video Output N/A
Certification Description
EMC CE‑EMC (EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035)
FCC (FCC 47 CFR part15 B)
Safety CE LVD (EN 62368‑1)
UL/CUL (UL 62368‑1, CAN/CSA C22.2 No. 62368‑1)
Environment CE‑RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);
Protection IP67 (IEC 60529)
General Description
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 5.0W
Power Interface Ø 5.5mm coaxial power plug
Dimensions Φ111 x 95mm (Φ4.4” x 3.7”)
Weight 0.32kg (0.71lb)
Material Metal
Working Environment ‑30 °C ~ 60 °C (‑22 °F ~ 140 °F), Humidity: ≤95% RH (non‑condensing)
Storage Environment ‑30 °C ~ 60 °C (‑22 °F ~ 140 °F), Humidity: ≤95% RH (non‑condensing)
Surge Protection 4KV
Reset Button Support
Web Client Language 13 Languages
English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian
