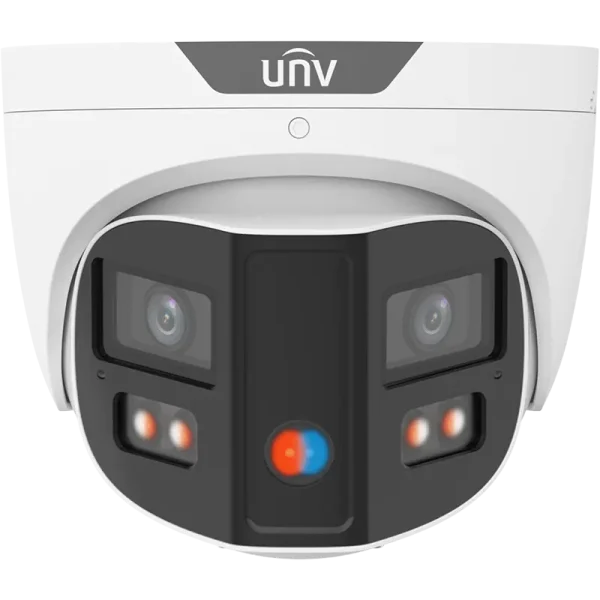

A security camera with two lenses facing at a 90-degree angle from each other, allowing for full 180-degree coverage
  • A security camera with two lenses facing at a 90-degree angle from each other, allowing for full 180-degree coverage
  • video-thumb-0

    • IPC3K28SE-ADF28KMC-DL-I0

    This unique camera has two lenses that are spliced together in software to create one ultra-wide 180° image. It also has Tri-Guard 2.0 features such as two-way audio, a dual IR and white light LED, and flashing red & blue strobe lights.

    Login for pricing
    Category: Tags: , , , ,

    Description

    The IPC3K28SE-ADF28KMC-DL-I0 is an 8MP camera made up of two 2.8mm lenses stitched together in software. This creates a seamless 180° 4K image which takes up a single channel on the NVR.

    This camera uses up to 12.6W, meaning that it only needs regular PoE to power it. It’s also rated for use in -30°C weather and is IP67 + IK10 resistant.

    Features – 8MP Double-Light Alarm Binocular Eyeball Network Camera

    • High quality image with 8MP, 1/2.5″CMOS sensor
    • 8MP (4096*1860)@20fps
    • The double lens splicing technology is adopted to realize the horizontal viewing angle of 180°
    • Colorhunter technology ensures 24-hour full-color images
    • Support red & blue warning light
    • 130dB true WDR technology enables clear image in strong light scene
    • Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
    • Intelligent People Flow Counting and Crowd Density Monitoring
    • Smart intrusion prevention with Color retrieval
    • Auto Scene Match (ASM)（Only WDR）
    • Alarm:1 in/1 out and Audio: 1 in/1 out
    • Built-in speaker and dual mics
    • Support 512 GB micro SD card

    A poster showing the Uniview Tri-Guard 2.0 camera with multiple lenses with a 180-degree super wide field of view

    Specification

    IPC3K28SE-ADF28KMC-DL-I0
    Camera
    Max Resolution 8 MP
    Sensor 1/2.5″ CMOS
    Min. Illumination Colour: 0.0005 lux ( F1.0, AGC ON)
    0 Lux with light
    Day/Night IR-cut filter with auto switch (ICR)
    Shutter Auto/Manual, 1 ~ 1/100000s
    Adjustment Angle Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360°
    S/N >52 dB
    WDR 130 dB
    Lens
    Focal Length 2.8 mm
    Iris Type Fixed
    Iris F1.0
    Field of View (H) 180°
    Field of View (V) 65°
    Field of View (D) 180°
    Lens Type Fixed
    DORI
    DORI Distance (Lens) 2.8mm
    DORI Distance (Detect) 63.1m(206.7ft)
    DORI Distance (Observe) 25.2m(82.7ft)
    DORI Distance (Recognize) 12.6m(41.3ft)
    DORI Distance (Identify) 6.3m(20.7ft)
    Illuminator
    Supplemental Light Dual light
    Illumination Distance (IR) IR 30 m, Warm Light 30 m
    Illumination Distance (Warm Light) IR 30 m, Warm Light 30 m
    IR On/Off Control Auto/Manual
    Wavelength 850 nm
    Light On/Off Control Auto/Manual
    Video
    Video Compression Ultra 265, H.265, H.264, MJPEG
    H.264 Code Profile Baseline profile, Main profile, High profile
    Frame Rate Main Stream: 8MP (4096*1860), Max 20fps;
    Sub Stream: 2048*936, Max 20fps
    Video Bit Rate 128 Kbps to 16 Mbps
    U-code Support
    OSD Up to 8 OSDs
    Privacy Mask Up to 4 areas
    ROI Up to 8 areas
    Video Stream Dual Streams
    Auto Scene Match (ASM) Support (Only WDR)
    White Balance Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
    Digital Noise Reduction 2D/3D DNR
    Smart IR Support
    Flip N/A
    Dewarping N/A
    HLC Support
    BLC Support
    Defog Digital Defog
    Image Stabilization N/A
    Intelligent
    Smart Intrusion Prevention Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
    Recognition N/A
    Statistical Analysis People Counting, Support People Flow Counting and Crowd Density Monitoring
    Attribute Collection SIP with color retrieval
    Events
    Basic Detection Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection
    General Function Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output
    Audio
    Audio Compression G.711U, G.711A
    Audio Bitrate 64 Kbps
    Two-way Audio Support
    Suppression Support
    Sampling Rate 8 kHz
    Storage
    Edge Storage Micro SD, up to 512 GB
    Network Storage ANR, NAS (NFS)
    Network
    Protocols IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
    Compatible Integration ONVIF (Profile S, Profile G, Profile T),
    API, SDK
    User/Host Up to 32 users. 3 user levels: administrator, common user and operator
    Security Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
    Client UNV-Link, UNV-Link Pro, EZStation
    Web Browser Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
    Interface
    Audio I/O 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
    Alarm I/O 1/1
    Serial Port N/A
    Built-in Mic Built-in two mics
    Built-in Speaker Support
    WIFI N/A
    Network 1 × RJ45 10 M/100 M Base-TX Ethernet
    Video Output N/A
    Certification
    EMC CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130)
    FCC (FCC 47 CFR part15 B)
    Safety CE-LVD (EN 62368-1)
    CB (IEC 62368-1)
    UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
    Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
    Protection IP67 (IEC 60529)
    IK10 (IEC 62262)
    General
    Power DC 12V±25%, PoE (IEEE 802.3af)
    Power Consumption Max 12.6W
    Power Interface Ø5.5 mm coaxial power plug
    Dimensions Ø128.7 x 109.9mm (Ø5.1”x 4.3”) (Ø x H)
    Weight 0.86kg (1.9lb)
    Material Metal
    Working Environment -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
    Storage Environment -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
    Surge Protection 4 KV
    Reset Button Support
    Web Client Language 20 Languages
    Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
