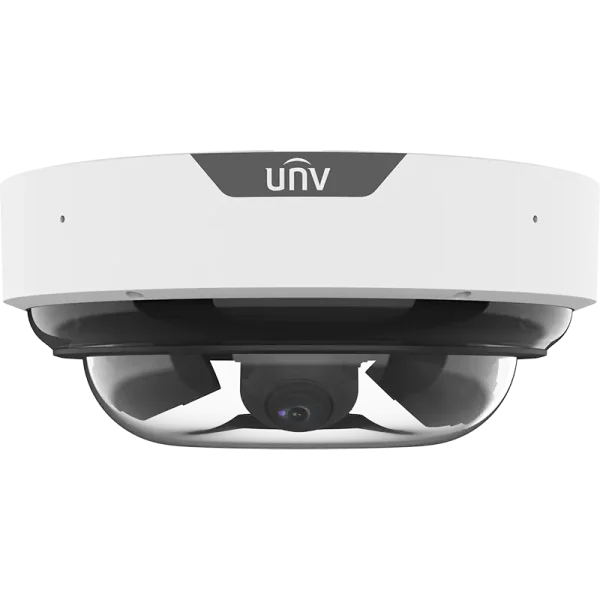

A large security camera with four lenses inside a circular dome made Uniview

IPC8645EA-ADZKM-I1

This is a multi-sensor camera from Uniview. It’s actually four cameras in one; each camera can be manually adjusted during installing to point in a specific direction. This gives you flexibility during installation, allowing you to mounting this camera on a ceiling, corner, or wall with excellent coverage. Each lens can also be zoomed in via the PTZ controls, allowing you to get the perfect image on each lens.

This camera has a built-in microphone, smart intrusion prevention, and powerful 50m (164ft) IR LEDs. This makes it suitable for warehouses, grocery stores, train stations, and more!

Login for pricing
Category: Tags: , , , ,

Description

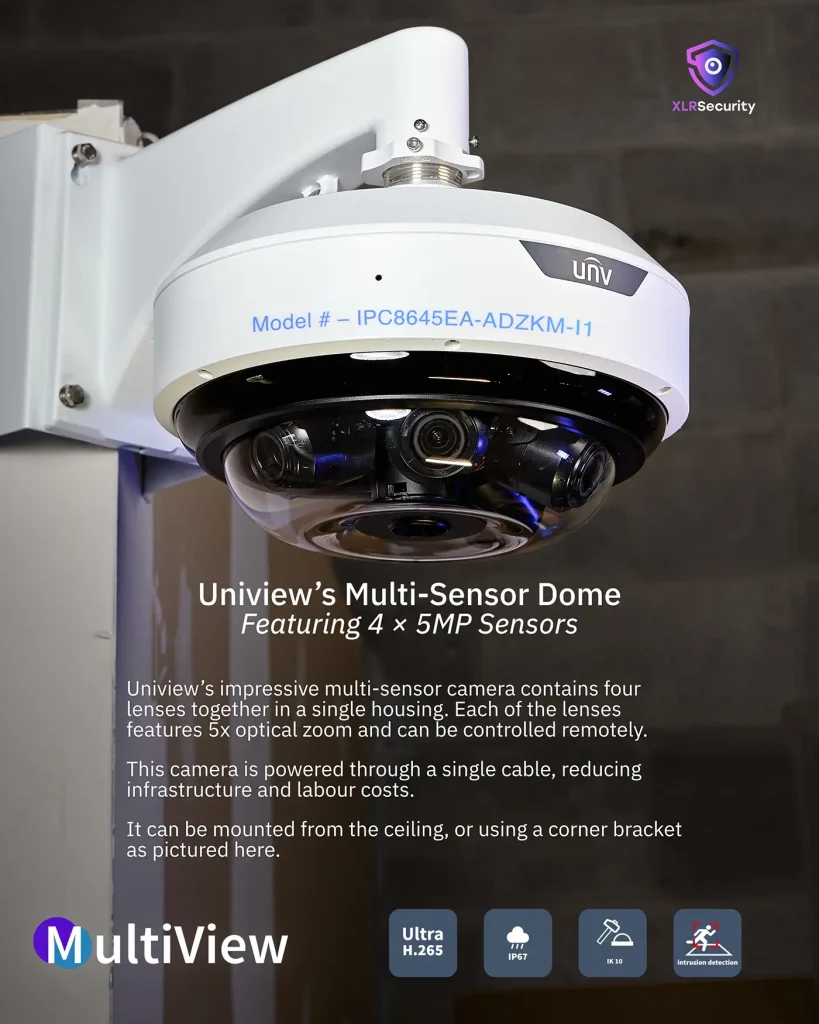

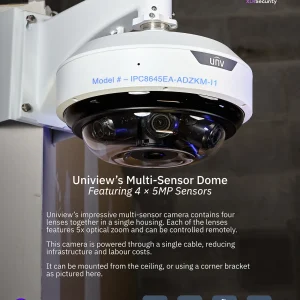

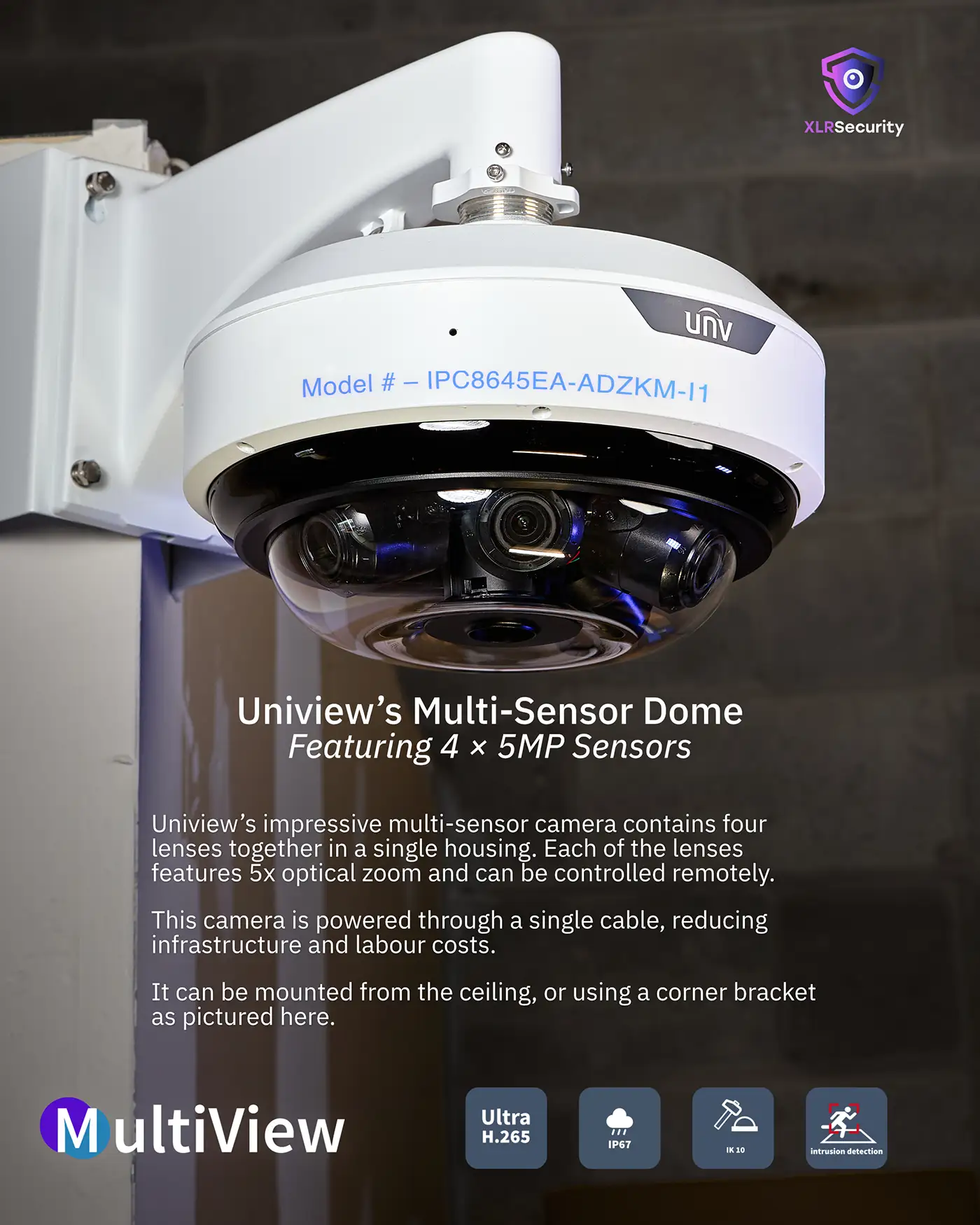

This unique camera is able to cover a full 360-degrees using only a single Cat5e or Cat6 cable. Not only that, but you can adjust each of the four lenses, allowing you to get the perfect shot on a doorway or other key areas. The lenses are 5MP LightHunter, which means it works well in ultra-low light scenarios.

This camera also has a built-in microphone, intelligent vehicle + human detection, and powerful IR lights for illumination at night. Each lens has two powerful IR lights for optimal coverage; there is also one downwards facing IR LED to illuminate the area directly below the camera.

Note: Despite using a single cable, this camera will take up four channels on an NVR. Make sure you have at least four empty channels on your video recorder before adding this camera.

Recommended Accessories:

  • TR-UF45-K-IN – Plate adapter for IPC8645EA-ADZKM-I1
  • TR-WE45-A-IN – Wall mount bracket
  • TR-UC08-A – Corner mount adapter

Features – 4 x 5MP LightHunter Multi-Sensor Varifocal Network Dome Camera

  • One IP with four channels
  • Support multiple intelligent functions, different function of each channel can be enabled at the same time to satisfy various
    analysis requirement
  • Pan, tilt, rotation angle of each lens can be adjusted independently, suitable for more complicated scenes
  • 4 channel video output, 2880*1620@30fps in the main stream of each channel, provide high definition image
  • Ultra 265, H.265, H.264, MJPEG
  • Smart intrusion prevention, support false alarm filtering, realize accurate detection based on specific target
  • People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
  • LightHunter technology ensures ultra-high image quality in low illumination environment
  • Up to 130 dB Optical WDR (Wide Dynamic Range)
  • IP67 ingress & IK10 protection
  • PoE++ recommended (can use PoE+ if IR lights are disabled)
