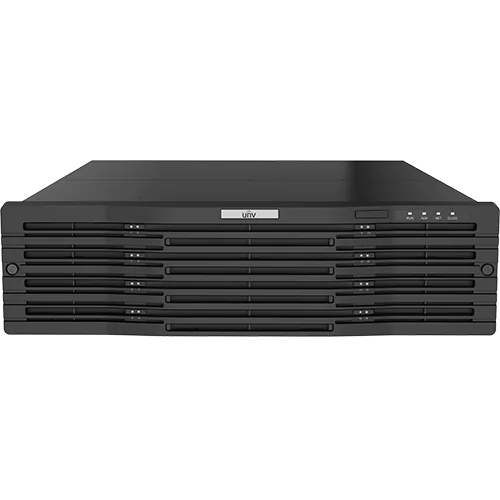

Uniview NVR516-128 up to 128ch Network Video Recorder Front

NVR516-128

128 CH | No PoE | 16xSATA w/RAID Support | H.265/H.264 | P2P | 2xHDMI/VGA w/Independent Layouts | 24/8 Alarm In/Out | Quad NIC | Up to 12MP

Login for pricing
Category: Tags: , ,

Description

Features – 128 Ch Network Video Recorder

  • Support Ultra 265/H.265/H.264 video formats
  • 128-channel input
  • Up to 12 Megapixels resolution recording
  • 16 SATA HDDs, Up to 10TB for each HDD, Hot-Swap
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade
  • Support N+1 Hot spare

Specification

Decoding Description
DecodingFormat Ultra 265, H.265, H.264
DecodingCapability 4 x 12MP@20, 4 x 4K@30, 16 x 1080P@30, 36 x 720P@30, 64 x D1
AudioCompression G.711A, G.711U
Network Description
IncomingBandwidth NVR516‑64:384Mbps
NVR516‑128:512Mbps
OutgoingBandwidth 384Mbps
RemoteUsers 128
Protocols TCP/IP;P2P;UPnP;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SNMP;SMTP;NFS;RTSP;802.1x;IPV6
Browser(Plugin) Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above)
Video/AudioInput Description
IPVideoInput NVR516‑64:64‑ch
NVR516‑128:128‑ch
BNCAudioInput 1‑ch
Video/AudioOutput Description
HDMIOutput HDMI1/HDMI2(HDMI audio output is not supported):4K (3840×2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
VGAOutput VGA:1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
BNCAudioOutput 1‑ch
LiveviewDisplay VGA:1/4/6/8/9/16/25/36,
HDMI1/HDMI2:1/4/6/8/9/16/25/36/64
CorridorModeScreen 3/4/5/7/9/10/12/16/32
Two-wayAudio Description
Two-wayAudio 1‑ch, BNC(Using the audio input and output)
Snapshot Description
FTP/Schedule/EventSnapshot NVR516‑64:64‑ch snapshot, up to 4K resolution
NVR516‑128:128‑ch snapshot, up to 4K resolution
Recording Description
RecordingResolution 12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
SynchronousPlaybackinLocal 16‑ch
Smart Description
VCADetectionbyIPC Face Detection;Vehicle Detection;SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area);Ultra Motion Detection(UMD);Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection);People Counting(People Flow Counting, Crowd Density Monitoring);Video Metadata;Traffic Monitoring
VCASearch Motor Vehicle Search;Non‑Motor Vehicle Search;Human Body Search;General Search;People Counting Report
SmartbyIPC All channels (up to 32 images/s in total)Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring
Alarm Description
GeneralAlarm Defocus Detection;Scene Change Detection;Object Left Behind;Object Removed;Auto Tracking;Motion Detection;Tampering;Human Body Detection;Video Loss;Alarm Input;Audio Detection
AlertAlarm IP Conflict;Network Disconnected;Disk Offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal;High CPU Temperature;High Motherboard Temperature;Array Damaged;Array Degraded
GUILanguage Description
GUILanguage 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
HardDisk Description
SATA 16 SATA Interfaces
Capacity Up to 16TB for each HDD(The maximum HDD capacity varies with environment temperature)
DiskArrayType RAID 0, 1, 5, 6, 10, 50, 60
HotSwap Support
ExternalInterface Description
NetworkInterface 4 RJ45 10M/100M/1000M self‑adaptive Ethernet Interface;2 1000M SFP Ethernet Interface
USB Rear panel: 4 x USB3.0
RS485 1
RS232 1
AlarmIn 24‑ch
AlarmOut 8‑ch
eSATA 1
miniSAS 2
PowerOutput 12V
PowerSupply AC 100 ～ 240 V
PowerSwitch Support
RedundantPowerSupply Support
WorkingEnvironment Description
WorkingTemperature ‑10 °C ~ 55 °C (14 °F ~ 131 °F)
WorkingHumidity ≤ 90% RH (non‑condensing)
PowerConsumption(withoutHDD) ≤ 50W
Dimensions Description
Weight(withoutHDD) ≤ 10Kg (22.05lb)
Dimensions 482mm ×477mm × 131mm (19.0″×18.8″×5.2″)
Certification Description
Certification CE;FCC;UL;RoHS;WEEE
CE EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035
FCC Part15 Subpart B
