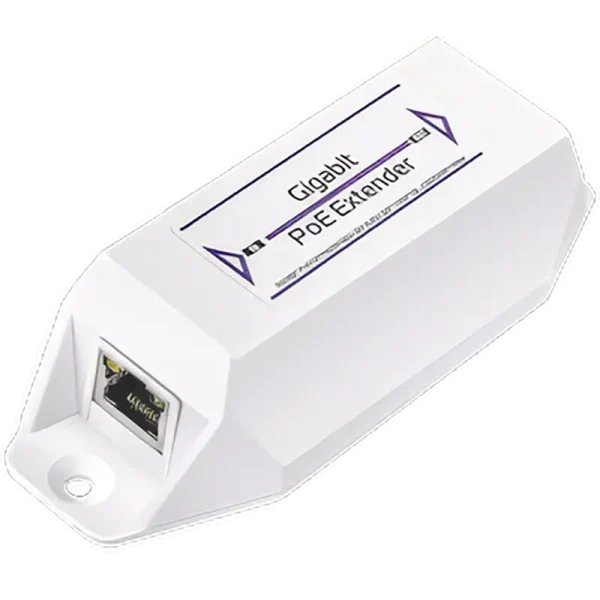

PN-E7002-1P-25
This is an indoor PoE+ extender, allowing you to increase the maximum distance of a Cat5e or Cat6 run by an additional 100 metres. After extending the signal, the maximum power will be 25W at 100m.
Description
This is a PoE+ extender made by Petenet (pronunced ‘pet-net’). If you need to extend your cables a bit further, this project will be your best friend. It has a single input and output – both are rated for 10/100/1000 Mbps (Gigabit).
It can easily be mounted on a wall using the two screw holes built-in to the bracket. Both RJ45 connectors are shielded, ensuring the integrity of your data as it travels a long distance.
Specification
| Item | Description | |||||||
| No of channels | 1 (PoE IN) into 1 (PoE OUT) | |||||||
| Pass through Data Rates | 10/100/1000 Mbps hall/full duplex | |||||||
| Power over Ethernet Input | Pin Assignment and Polarity: Both 1/2, 3/6 and 4/5, 7/8 |
|||||||
| Power over Ethernet Output | Pin Assignment and Polarity: 1/2(+), 3/6(-) Output Power Voltage: Upto 25W |
|||||||
| Connectors | Shielded RJ-45, EIA 568A and 568B | |||||||
| Network Cables | Shield category 5 (or higher) | |||||||
| Mounting | Wall or shelf | |||||||
| Environment | Indoor | |||||||
| Regulatory Compliance | IEEE 802.3af (PoE) IEEE 802.3at (PoE+) |
|||||||
| Environment Conditions | Operating ambient temperature: -10 to 55°C Operating humidity: Maximum 90%, Non-condensing Storage Temperature: -40 to 70°C Storage humidity: Maximum 95%, Non-condensing |
|||||||
| Dimensions | 130x 46x 35mm | |||||||
