Description

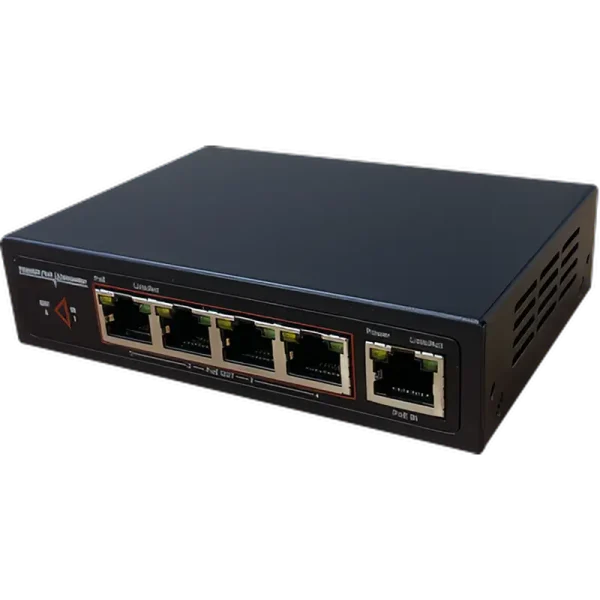

This is a PoE+ ethernet port made by Petenet (pronounced ‘pet-net’). This switch is specifically designed for use in video surveillance applications. All Petenet switches have a neat toggle switch that allows you to activate four functions:
- VLAN: Ports 1-4 will be unable to communicate with each other. They can only pass data to the uplink port.
- Extend: Ports 1-4 can transmit power and data up to 250m over Cat5e or Cat6 cable – however the network speed of these ports are reduced to 10 Mbps.
- Watchdog: If a network port has a data link for 2-3 minutes WITHOUT data transmission, the port will automatically reboot. This will attempt to reboot and fix the camera’s connectivity issue.
- QOS: The ports with a yellow colour underneath will have a higher priority than other ports. This is helpful if these ports are used to connect Wireless APs or directly to a computer.
All Petenet switches use Realtek PoE chipsets, ensuring there are no issues with any network camera. These chips are standardized and used in all types of devices worldwide.
Specification
| Item | Description | |||||||
| No of channels | 1 (PoE IN) into 4 (PoE OUT) | |||||||
| Pass through Data Rates | 10/100/1000 Mbps hall/full duplex | |||||||
| Power over Ethernet Input | Pin Assignment and Polarity: Both 1/2, 3/6 and 4/5, 7/8 |
|||||||
| Power over Ethernet Output | Pin Assignment and Polarity:1/2(+), 3/6(-) Output Power Voltage: Up to 12W for 4 PSE or 25W for 2 PSE |
|||||||
| Connectors | Shielded RJ-45, EIA 568A and 568B | |||||||
| Network Cables | Outdoor type Shield category 5 (or higher) | |||||||
| Mounting | Wall or shelf | |||||||
| Environment | Indoor | |||||||
| Regulatory Compliance | IEEE 802.3af(15.4W) (PoE) IEEE 802.3at (30W) IEEE 802.3bt 4 Pairs (60W) |
|||||||
| Environment Conditions | Operating ambient temperature: -10 to 45°C Operating humidity: Maximum 90%, Non-condensing Storage Temperature: -30 to 70°C Storage Humidity: Maximum 95%, Non-condensing |
|||||||
| Dimensions | 119x 85x 28mm | |||||||
