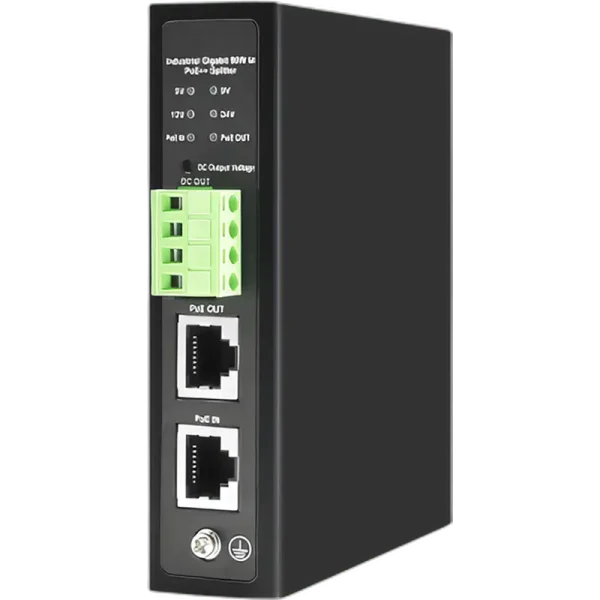

90W Gigabit PoE Splitter

PN-PD1001H-I

This devices takes incoming PoE++ (up to 90W) and splits in into selectable (5V, 9V, 12V, or 24V) DC output with two positive and negative terminal blocks, while also allowing for passthrough PoE output. This allows you to power up non-PoE devices such as switches and routers while still powering up a PoE camera or IP phone.

Login for pricing
Category: Tags: ,

Description

This is a PoE+ ethernet port made by Petenet (pronounced ‘pet-net’). This switch is specifically designed for use in video surveillance applications. All Petenet switches have a neat toggle switch that allows you to activate four functions:

  • VLAN: Ports 1-4 will be unable to communicate with each other. They can only pass data to the uplink port.
  • Extend: Ports 1-4 can transmit power and data up to 250m over Cat5e or Cat6 cable – however the network speed of these ports are reduced to 10 Mbps.
  • Watchdog: If a network port has a data link for 2-3 minutes WITHOUT data transmission, the port will automatically reboot. This will attempt to reboot and fix the camera’s connectivity issue.
  • QOS: The ports with a yellow colour underneath will have a higher priority than other ports. This is helpful if these ports are used to connect Wireless APs or directly to a computer.

All Petenet switches use Realtek PoE chipsets, ensuring there are no issues with any network camera. These chips are standardized and used in all types of devices worldwide.

Specification

Item Description
Ports 1 x 10/100/1000M RJ45 PoE Port (Data + Power IN)
1 x 10/100/1000M RJ45 PoE Port (Data + Power OUT)
1 x DC Interface (DC OUT)
Pass through Data Rates 10/100/1000 Mbps
Input Power Requirements DC Input Voltage: 42 to 57 VDC
Connectors Shielded RJ-45, EIA 568A and 568B
PoE Input Types 802.3af/at/bt up to 90W
Dimensions 119×85.5x28mm
Regulatory Compliance IEEE 802.3af/at (PoE)
IEEE 802.3/u/ab (Ethernet)
RoHS Compliant, CE, FCC
Environment Conditions Operating ambient temperature: -40 to 70°C
Operating humidity: Maximum 90%, Non-condensing
Storage Temperature: -40 to 70°C
Storage Humidity: Maximum 95%, Non-condensing
Electromagnetic FCC Part15, Class B
