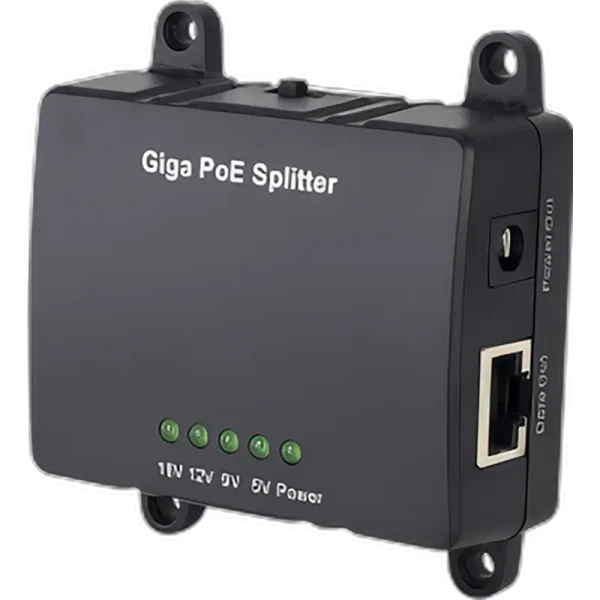

Selectable Output PoE Splitter

PN-PD1001T

This selectable PoE splitter allows you to split incoming 48V PoE into 5V / 9V / 12V / 18V DC and Ethernet (for data).  This allows you to power devices that do not natively accept PoE, such as routers and switches.

Login for pricing
Category: Tags: ,

Description

This is a Scalable Output Gigabit PoE Splitter made by Petenet (pronounced ‘pet-net’). It eliminates the need for running separate DC power cables on a wired LAN.

Here are a few features of the Splitter:

  • Converts 48VDC transmitted through RJ45 ethernet cable into 5V, 9V, 12V or 18V power output depending on the configuration
  • Supports a wide input voltage range of 36VDC to 57 VDC
  • 1 x 10/100/1000 RJ45 PoE Port (Data + Power IN)
  • 1 x 10/100/1000 RJ45 LAN Port (Data + Power OUT)
  • 1 x DC Interface (DC OUT)

Installers only need a single Cat 5 Ethernet cable to transmit both power and data to each device. Its wide input voltage range and minimal external components requirements make it a compact and efficient solution for PoE deployments.

Specification

Network Media10 Mbps: Cat 3,4,5 Unsheilded Cable
100 Mbps: Cat5, 5e Unsheilded Cable
1000 Mbps: Cat5e, 6 Unsheilded CablePower OutputAdjustable 5VDC/3A Max,
Adjustable 9VDC/2.5A Max,
Adjustable 12VDC/2.5A Max,(default)
Adjustable 18VDC/1.6A MaxIndicatorsPower/DC Out Voltage Indicators

Item Description
Ports 1 x 10/100/1000M RJ45 PoE Port (Data + Power IN)
1 x 10/100/1000M RJ45 PoE Port (Data + Power OUT)
1 x DC Interface (DC OUT)
Pass through Data Rates 10/100/1000 Mbps
Input Power Requirements DC Input Voltage: 36 to 57 VDC
Connectors Shielded RJ-45, EIA 568A and 568B
PoE Input Types 802.3af/at up to 30W
Dimensions 78x73x28mm
Regulatory Compliance IEEE 802.3af/at (PoE)
IEEE 802.3/u/ab (Ethernet)
RoHS Compliant, CE, FCC
Environment Conditions Operating ambient temperature: 0 to 40°C
Operating humidity: Maximum 90%, Non-condensing
Storage Temperature: -20 to 70°C
Storage Humidity: Maximum 95%, Non-condensing
Electromagnetic FCC Part15, Class B
