Description

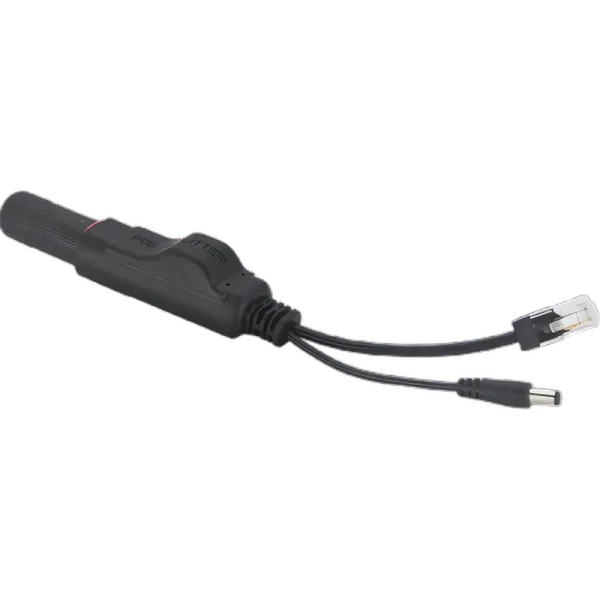

This is a Waterproof PoE Splitter made by Petenet (pronounced ‘pet-net’). It eliminates the need for running separate DC power cables on a wired LAN.
Here are a few features of the Splitter:
- Converts 48VDC transmitted through RJ45 ethernet cable into a 12VDC power output
- 1 x 10/100/1000 RJ45 PoE Port (Data + Power IN)
- 1 x 10/100/1000 RJ45 LAN Port (Only DATA)
- 1 x DC Jack (DC OUT)
Installers only need a single Cat 5 Ethernet cable to transmit both power and data to each device. Its wide input voltage range and minimal external components requirements make it a compact and efficient solution for PoE deployments.
Specification
tr>Network Media10 Mbps: Cat 3,4,5 Unsheilded Cable
100 Mbps: Cat5, 5E Unsheilded Cabletr>Power Output12VDC/1Atr>IndicatorsPower
| Item | Description | ||||||||
| No of channels | 1 (PoE IN) into 4 (PoE OUT) | ||||||||
| Ports | 1 x 10/100 RJ45 PoE Port (Data + Power IN) 1 x 10/100M RJ45 LAN Port (Only DATA) 1 x DC Jack (DC OUT) |
||||||||
| Pass through Data Rates | 10/100 Mbps | ||||||||
| Input Power Requirements | DC Input Voltage: 42 to 57 Vac | ||||||||
| Connectors | Shielded RJ-45, EIA 568A and 568B | ||||||||
| Regulatory Compliance | IEEE 802.3af(15.4W) (PoE) IEEE 802.3 (Ethernet) IEEE 802.3u (Fast Ethernet) |
||||||||
| Environment Conditions | Operating ambient temperature: 0 to 40°C Operating humidity: Maximum 90%, Non-condensing Storage Temperature: -20 to 70°C Storage Humidity: Maximum 95%, Non-condensing |
||||||||
