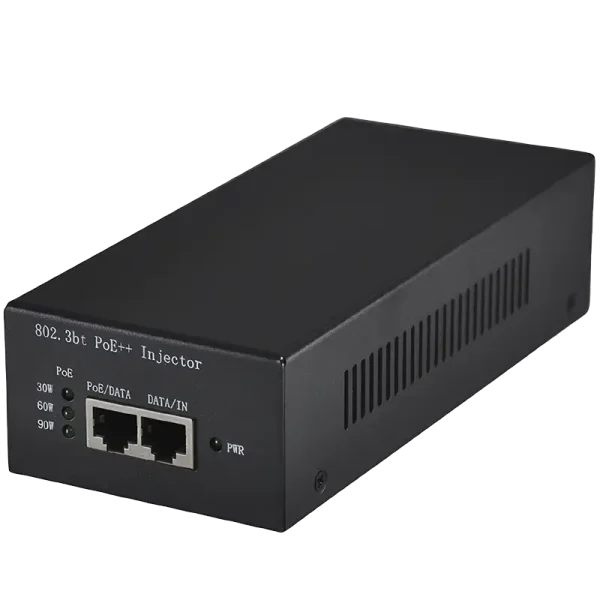

A black rectangular 90W PoE++ Injector with LED indicators on the side that show how much current the injector is drawing

PN-PSE101H+

This is a PoE++ injector that supplies up to 90W of power to your devices. This makes it suitable for high-end PTZ cameras or enterprise-grade wireless access points. There are also LED indicators that show when the injector is drawing 0-30W, 30-60W, or 60-90W of current.

Login for pricing
Category: Tags: ,

Description

The 90W PoE+ Injector is a single port one, that is compact and cost-effective by Petenet. This injector supplies 54V of DC power over Cat5e or Cat6 Ethernet cable. It’s also Gigabit rated, ensuring fast speeds for wireless access points.

Here are a few features of the switch:

  • Up to 90W of power
  • Supports 10/100/1000 Base-T applications
  • LED indicators power input and PoE output
  • Converts standard 100~240V/AC power into low voltage

Lastly, this injector has over-current and voltage protection, keeping your equipment safe in the event of a power surge.

Specification

Item Description
No of channels 1
Pass through Data Rates 10/100/1000 Mbps
Power over Ethernet Output Pin Assignment and Polarity
1/2(-), 3/6 (+), 4/5 (+) 7/8 (-)
Output Power Voltage: 54VDC
User Port Power: 90 Max
Input Power Requirements AC Input Voltage: 100 to 240VAC
AC Input Current: 1A 100-240 VAC
AC Frequnency: 50 to 60 Hz
Indicators System Indicator: AC Power
User Indicator: Channel Power
30W: When the output power is 0 to 30W, led lights up
60W: When the output power is 0 to 60W, led lights up
90W: When the output power is 0 to 90W, led lights up
Protecion Over current protection
Over load protection
Over voltage protection
Anti-interference protection
Connectors Shielded RJ-45, EIA 568A and 568B
Mounting Wall or shelf
Environment Indoor or outdoor
Regulatory Compliance IEEE 802.3af (15.4W)
IEEE 802.3at (30W)
IEEE 802.3bt (90W)
Environment Conditions Operating ambient temperature: 0 to 45°C
Operating humidity: Maximum 80%, Non-condensing
Storage Temperature: -20 to 70°C
Storage humidity: Maximum 80%, Non-condensing
Dimensions 178.5x 80x 46mm
