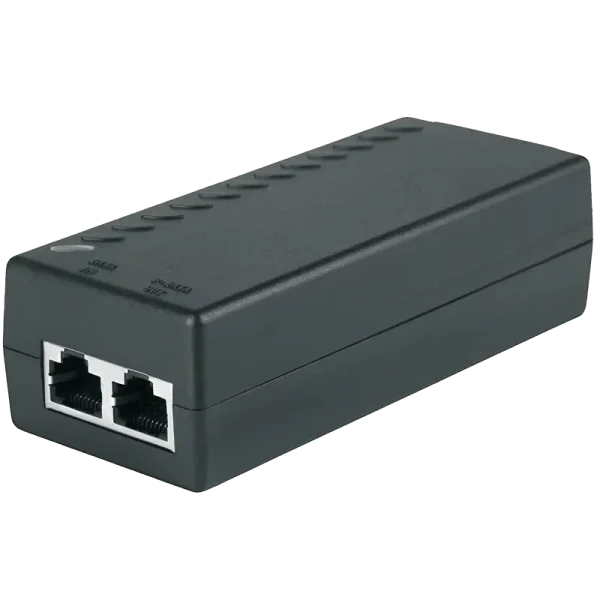

PN-PSE101TN
This is a 30W PoE+ injector – perfect for powering security cameras, wireless access points, or PTZs. It supports a maximum bandwidth of 2.5 Gbps which is sufficient for today’s networking equipment.
Description
The 30W PoE+ Injector is a single port one, that is compact and cost-effective by Petenet. This injector supplies 54V of DC power over Cat5e or Cat6 Ethernet cable. It’s also Gigabit rated, ensuring fast speeds for wireless access points.
Here are a few features of the injector:
- Up to 30W of power on 2-pairs
- Supports 10/100/1000 Base-T applications
- LED indicators power input and PoE output
- Converts standard 100~240V/AC power into low voltage
Lastly, this injector has over-current and voltage protection, keeping your equipment safe in the event of a power surge.
Specification
| Item | Description | |||||||
| No of channels | 1 | |||||||
| Pass through Data Rates | 10/100/1000 Mbps half/full duplex | |||||||
| Power over Ethernet Output | Pin Assignment and Polarity 1/2(-), 3/6 (+) Output Power Voltage: 54VDC User Port Power: 30W Max |
|||||||
| Input Power Requirements | AC Input Voltage: 100 to 240VAC AC Input Current: 0.5A 100-240 VAC AC Frequnency: 50 to 60 Hz |
|||||||
| Indicators | System Indicator: AC Power User Indicator: Channel Power |
|||||||
| Protecion | Over current protection Over load protection Over voltage protection Anti-interference protection |
|||||||
| Connectors | Shielded RJ-45, EIA 568A and 568B | |||||||
| Network Cables | Outdoor type Shielded category 5e (or higher) | |||||||
| Environment | Indoor or outdoor | |||||||
| Regulatory Compliance | IEEE 802.3af (15.4W) IEEE 802.3at (30W) |
|||||||
| Environment Conditions | Operating ambient temperature: 0 to 40°C Operating humidity: Maximum 90%, Non-condensing Storage Temperature: -40 to 70°C Storage humidity: Maximum 90%, Non-condensing |
|||||||
| Dimensions | 121x 50x 36mm | |||||||
