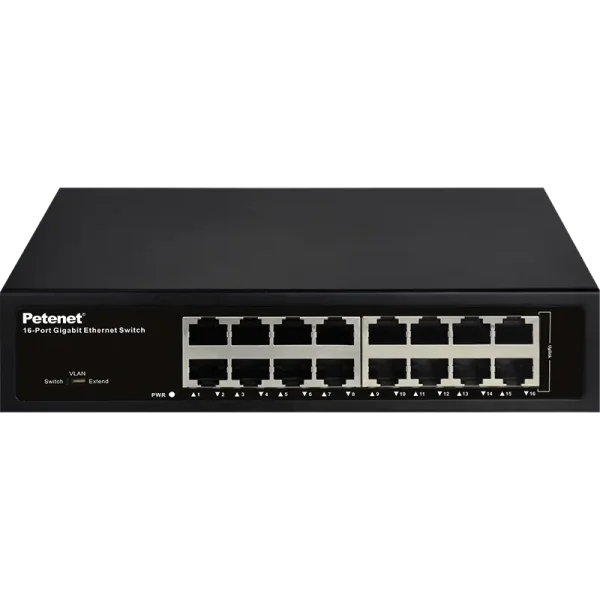

PN-S7016

16-port Gigabit PoE+ switch with 1x Gigabit uplink port. This switch supports VLAN, QOS, PoE Watchdog, and Extended Transmission via DIP switches.

Login for pricing
Categories: , Tags: ,

Description

This is a 16-ch PoE+ switch made by Petenet (pronounced ‘pet-net’). This switch is specifically designed for use in video surveillance applications. All Petenet switches have a neat toggle switch that allows you to activate four functions:

  • VLAN: Ports 1-4 will be unable to communicate with each other. They can only pass data to the uplink port.
  • Extend: Ports 1-4 can transmit power and data up to 250m over Cat5e or Cat6 cable – however the network speed of these ports are reduced to 10 Mbps.
  • Watchdog: If a network port has a data link for 2-3 minutes WITHOUT data transmission, the port will automatically reboot. This will attempt to reboot and fix the camera’s connectivity issue.
  • QOS: The ports with a yellow colour underneath will have a higher priority than other ports. This is helpful if these ports are used to connect Wireless APs or directly to a computer.

All Petenet switches use Realtek PoE chipsets, ensuring there are no issues with any network camera. These chips are standardized and used in all types of devices worldwide.

Specification

Item Description
Power Power supply built-in Power Supply
Voltage Range AC100~240V
Consumption <15W
Ethernet Speed 1~16 Port: 10/100/1000Mbps
Transmission Distance 100Metre(328ft)
Network Switch Ethernet Standard IEEE 802.3/802.3u/802.3ab
Switching Capacity 32G
Transfer Rate 14,880pps for 10Mbps
148,800pps for 100Mbps
1,488,000pps for 1000Mbps
MAC Address 8K MAC address table
LINK / ACT ON Green The port is connecting
Blinks – The port is receiving or transmitting data
Off – The port is not linked successfully with the device
Environment Working Temperature 0~40 °C
Storage Temperature -40~70 °C
Humidity
Non-condesing		 0~90%
Mechanical Dimension 200x 118x 44mm
Color Black
