PN-S7024
24-port Gigabit unmanaged switch, VLAN / extended transmission via DIP switch, 48 Gbps switching capacity (non-PoE switch)
Description

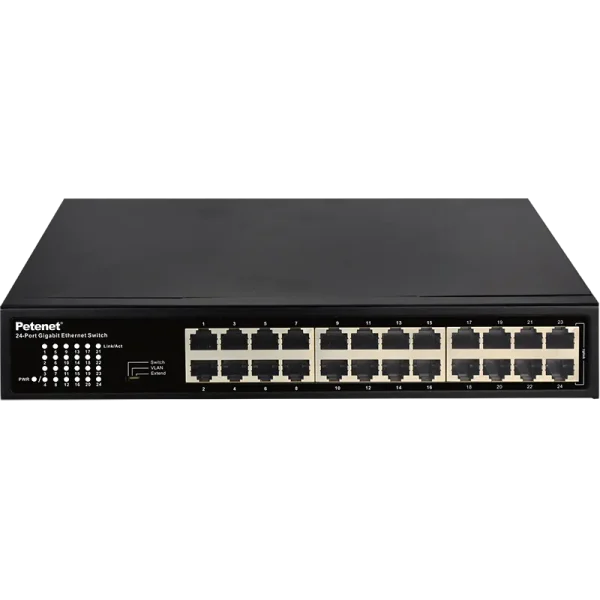

This is a 24-port unmanaged switch produced by Petenet (pronounced ‘pet-net’). It’s designed for small home or office networking scenarios where you need Gigabit speeds at an affordable price. This is a non-PoE switch, suitable for computers, printers, TVs, and video game consoles.
If you’re installing IP Phones, security cameras, or wireless APs, we recommend using a PoE switch instead. This will allow all your devices to be powered over Cat5e / Cat6 without needing a separate power supply.
Specification
| Item | Description | ||||||||
| Power | Power supply | External Power Adaptor | |||||||
| Voltage Range | AC100~240V | ||||||||
| Consumption | <15W | ||||||||
| Ethernet | Speed | 1-24 Port: 10/100/1000Mbpss | |||||||
| Transmission Distance | 100Meter (328ft) | ||||||||
| Network Switch | Ethernet Standard | IEEE 802.3/802.3u/802.3ab | |||||||
| Switching Capacity | 48G | ||||||||
| Transfer Rate | 14,880pps for 10Mbps | ||||||||
| 148,800pps for 100Mbps | |||||||||
| 1,488,000pps for 1000Mbps | |||||||||
| MAC Address | 8K MAC address table | ||||||||
| LINK / ACT | ON | Green | The port is connecting | ||||||
| Blinks | – | The port is receiving or transmitting data | |||||||
| Off | – | The port is not linked successfully with the device | |||||||
| Environment | Working Temperature | 0~40 °C | |||||||
| Storage Temperature | -40~70 °C | ||||||||
| Humidity Non-condesing | 0~90% | ||||||||
| Mechanical | Dimension | 270 x 180 x 44mm | |||||||
| Color | Black | ||||||||
