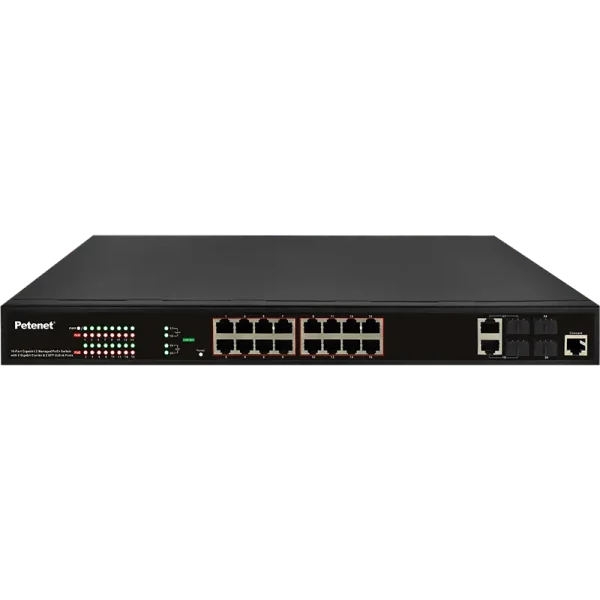

PN-S7220-16P-250
16-port L2 Managed Gigabit PoE+ switch, 2 RJ45 + 2 SFP Gigabit uplinks, supports VLAN, QOS, PoE Watchdog, and Extended Transmission via DIP switches, 250W max power budget
Description
This is a layer-2 managed PoE+ switch with 16-ports, 2 shared RJ45 + SFP uplink ports, and an additional 2 SFP ports. It’s compliant with IEEE 802.3af/at standards, making it perfect for powering CCTV cameras and wireless APs. There’s also a console port for logging into the switch and managing the network.
This switch is useful as the backhaul of a wired network, allowing you to bridge long distances with fiber cable while also supplying power for PoE cameras.
All Petenet switches have a neat toggle switch that allows you to activate four functions:
- VLAN: Ports 1-4 will be unable to communicate with each other. They can only pass data to the uplink port.
- Extend: Ports 1-4 can transmit power and data up to 250m over Cat5e or Cat6 cable – however the network speed of these ports are reduced to 10 Mbps.
- Watchdog: If a network port has a data link for 2-3 minutes WITHOUT data transmission, the port will automatically reboot. This will attempt to reboot and fix the camera’s connectivity issue.
- QOS: The ports with a yellow colour underneath will have a higher priority than other ports. This is helpful if these ports are used to connect Wireless APs or directly to a computer.
Specification
| Item | Description | |||||||||
| Power | Power supply | Built-in power supply | ||||||||
| Voltage Range | AC100~240 V | |||||||||
| Consumption | 250W for 16 PoE | |||||||||
| Ethernet | Speed | 1~16 Port: 10/100/1000Mbps 17~18: 1000Mbps gigabit combo port 19~20: 1000Mbps SFP port (SFP supports optical module rates: 1.25Gbps) | ||||||||
| Transmission Distance | 100 meters(328ft) for RJ45, SFP optical module is optional and the transmission distance depends on the module | |||||||||
| Network Switch | Ethernet Standard | IEEE 802.3/802.3u/802.3ab/802.3z/802.3af/at | ||||||||
| Switching Capacity | 40G | |||||||||
| Transfer Rate | 14,880pps for 10Mbps | |||||||||
| 148,800pps for 100Mbps | ||||||||||
| 1,488,000pps for 1000Mbps | ||||||||||
| MAC Address | 8K MAC address table | |||||||||
| LINK / ACT | ON | Green | The port connection speed is 1000Mbps | |||||||
| Orange | The port connection speed is 10/100Mbps | |||||||||
| Blinks | – | The port is receiving or transmitting data | ||||||||
| Off | – | The port is not linked successfully with the device | ||||||||
| POE | On | Orange | PD is connected | |||||||
| Off | – | No PD is connected or power forwarding fails | ||||||||
| Capacity | 250W | |||||||||
| PoE Pin Assignment | V+(RJ45 Pin 1,2), V-(RJ45 Pin 3,6) | |||||||||
| Environment | Working Temperature | 0~40 °C | ||||||||
| Storage Temperature | -40~70 °C | |||||||||
| Humidity Non-condesing | 0~90% | |||||||||
| Mechanical | Dimension | 440x 200x 44mm | ||||||||
| Color | Black | |||||||||
