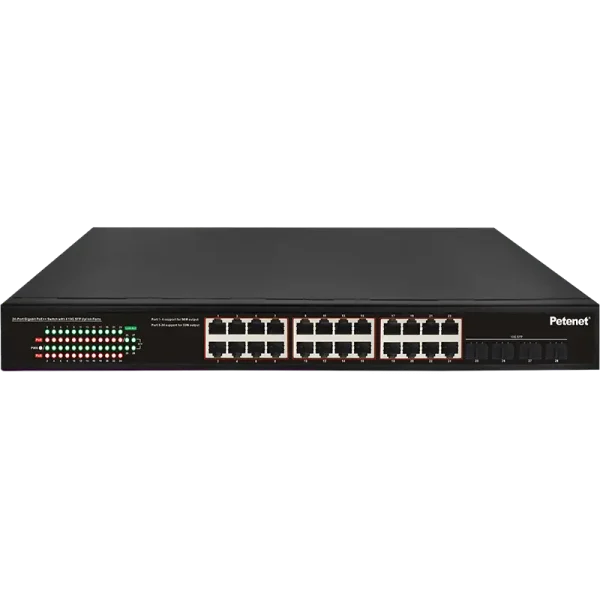

PN-S8028-24P-450

24-port Gigabit PoE+ switch with 1x Gigabit uplink port. This switch supports VLAN, QOS, PoE Watchdog, and Extended Transmission via DIP switches.

Login for pricing
Categories: , Tags: ,

Description

This is a 24-ch PoE+ switch made by Petenet (pronounced ‘pet-net’). This switch is specifically designed for use in video surveillance applications. All Petenet switches have a neat toggle switch that allows you to activate four functions:

  • VLAN: Ports 1-4 will be unable to communicate with each other. They can only pass data to the uplink port.
  • Extend: Ports 1-4 can transmit power and data up to 250m over Cat5e or Cat6 cable – however the network speed of these ports are reduced to 10 Mbps.
  • Watchdog: If a network port has a data link for 2-3 minutes WITHOUT data transmission, the port will automatically reboot. This will attempt to reboot and fix the camera’s connectivity issue.
  • QOS: The ports with a yellow colour underneath will have a higher priority than other ports. This is helpful if these ports are used to connect Wireless APs or directly to a computer.

All Petenet switches use Realtek PoE chipsets, ensuring there are no issues with any network camera. These chips are standardized and used in all types of devices worldwide.

Specification

tr>

Item Description
Power Power supply Built-in power supply
Voltage Range AC100~240V
Consumption 450W for 24 PoE
PoE Output for each port Port 1-4 Support for IEEE802.3af/at/bt and power up to 90W
Port 5-24 Support for IEEE802.3af/at and power up to 30W
Ethernet Speed 1~24 Port: 10/100/1000Mbps
25~28: 10G SFP + Port
Transmission Distance 100Metre(328ft) for RJ45
SFP optical module is optional, and the transmission distance depends on the optical module upto 20Km
Network Switch Ethernet Standard IEEE 802.3/802.3u/802.3ab/802.3z/802.3ae/802.3af/at/bt
Switching Capacity 128G
Transfer Rate 14,880pps for 10Mbps
148,800pps for 100Mbps
1,488,000pps for 1000Mbps
14,880,000pps for 10000Mbps
MAC Address 16K MAC address table
LINK / ACT ON Green The port is connected
Blinks – The port is receiving or transmitting data
Off – The port is not linked successfully with the device
POE On Orange PD is connected
Off – No PD is connected or power forwarding fails
PoE Pin Assignment IEEE 802.3af/at/:2 pairs
V+(RJ45 Pin 1,2), V-(RJ45 Pin 3,6)
IEEE 802.3bt/:4 pairs
V+(RJ45 Pin 1,2), V-(RJ45 Pin 3,6)
V+(RJ45 Pin 4,5), V-(RJ45 Pin 7,8)
Environment Working Temperature 0~40 °C
Storage Temperature -40~70 °C
Humidity
Non-condesing		 0~90%
Mechanical Dimension 440x 200x 44mm
Color Black
