POE-INJ-G90W – PoE++ Injector up to 90 watts PoE output
This is a 90W PoE++ injector – perfect for powering security cameras, wireless access points, or PTZs. It supports a maximum speed of 1000 Mbps which is full Gigabit capacity. This makes it suitable for Wifi 6 access points that require a lot of bandwidth. 90W PoE++ is commonly used for high-performance APs such as the Juniper Mist and Cisco Catalyst 9100.
Description

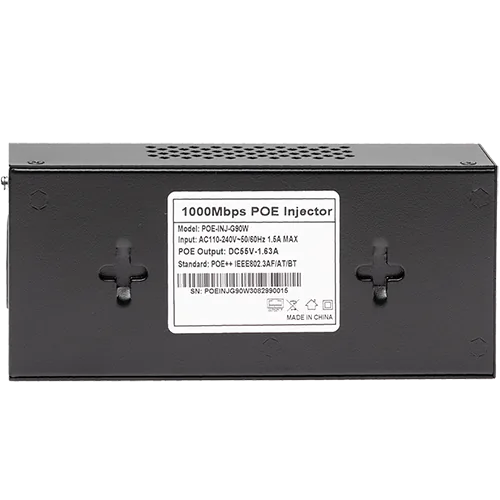

This PoE++ injector comes with a small AC power cable for connecting it to a wall outlet. On the front of the device there are two RJ45 ports – one for LAN (local network) and one for your PoE device. It supports devices with up to 90 watts of power and 1 Gbps (gigabit) network speeds. It also supports the IEEE802.3af/at/bt standard for PoE connectivity, ensuring it does not provide power if plugged into a non-PoE device.
90W PoE++ is commonly used for high-performance APs such as the Juniper Mist and Cisco Catalyst 9100. It can also be used for high-power PTZ cameras – especially when installed a long distance away. The additional wattage can help counter voltage drop experienced in long cable runs.
Specifications
- Input: AC110-240V~50/60hz 1.5A Max
- PoE Output: DC55V—-1.09A
- Standard: PoE+ IEEE802.3af/at/bt
- Max Transmission Distance: 100 meters
- Ports:
- 1 x 1Gbps RJ45 data-in port
- 1 x 1Gbps RJ45 power + data-out port
- 1 x AC socket
