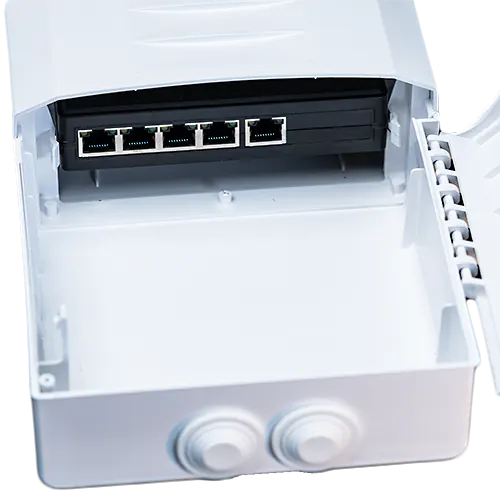

A white plastic enclosure that's opened, with a small black PoE splitter in front of it. The PoE spitter has five RJ45 ports on it.

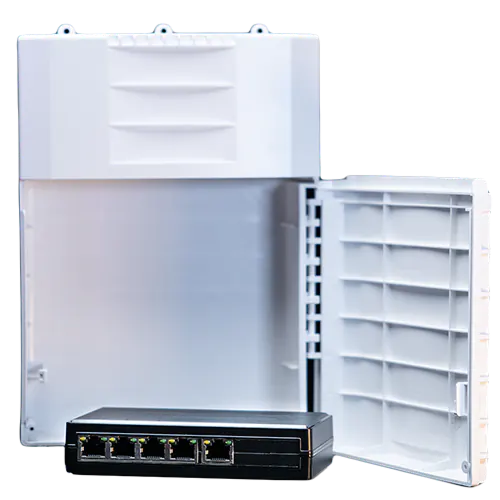

An outdoor plastic enclosure with a five port PoE splitter inside.

PW2020-4TENC11-EX

Kovo Outdoor Enclosure & PoE Splitter, 60W input, 4x Gigabit PoE outputs. Includes outdoor enclosure, which protects the device from rain and snow.

Description

This is a 4ch PoE splitter – it takes a PoE++ input (60W) and distributes it evenly among four ports. Instead of running four long cables for your camera, you can instead run a single cable to power this PoE splitter. Then, you can run four shorter cables to your security cameras – saving time and material costs.

It comes with an outdoor weatherproof enclosure, making it useful for installing multiple cameras on a pole or exterior of a building. You can also take the PoE splitter out of the enclosure and use them separately – for example if you’re using this device indoors and you need to save space.

Dimensions

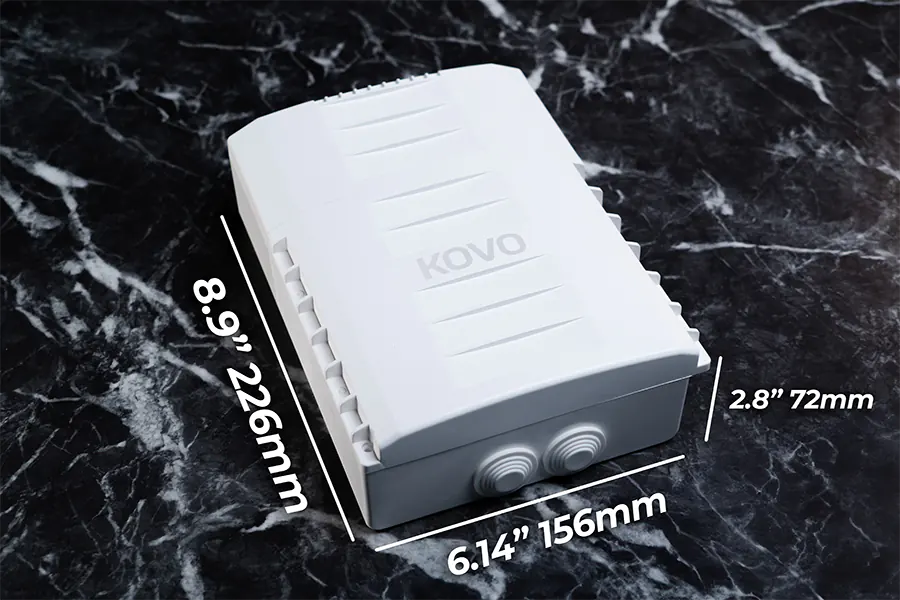

Exterior Dimensions – Length 8.9″ (226mm) x Width 6.14″ (156mm) x Depth 2.8″ (72mm)

Interior Dimensions – Longest Width 5.5″ (140mm) x Shortest Width 5.2″ (132mm)

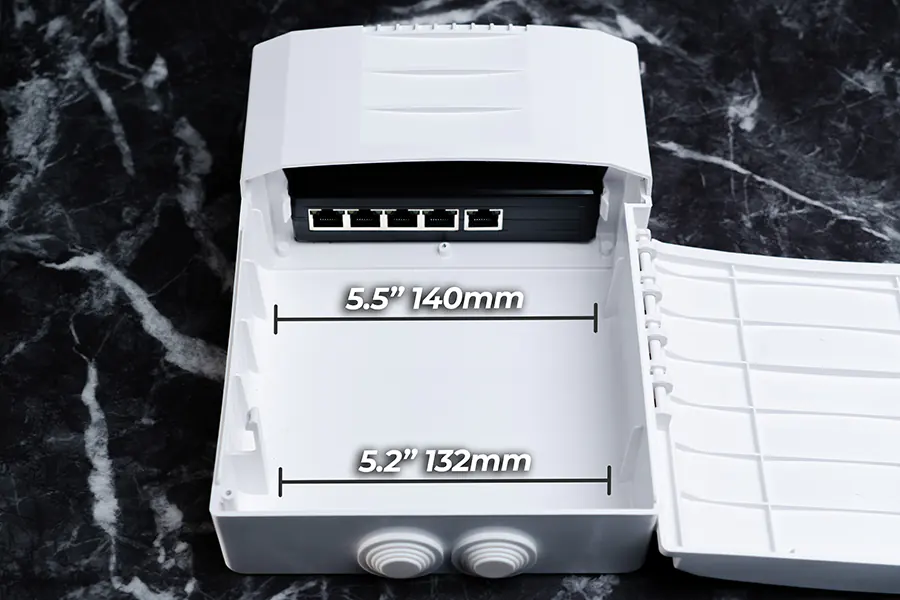

Inside dimensions of PW2020-4TENC11-EX showing 140mm of width internally.

Interior Dimensions – Depth 2.3″ (62mm)

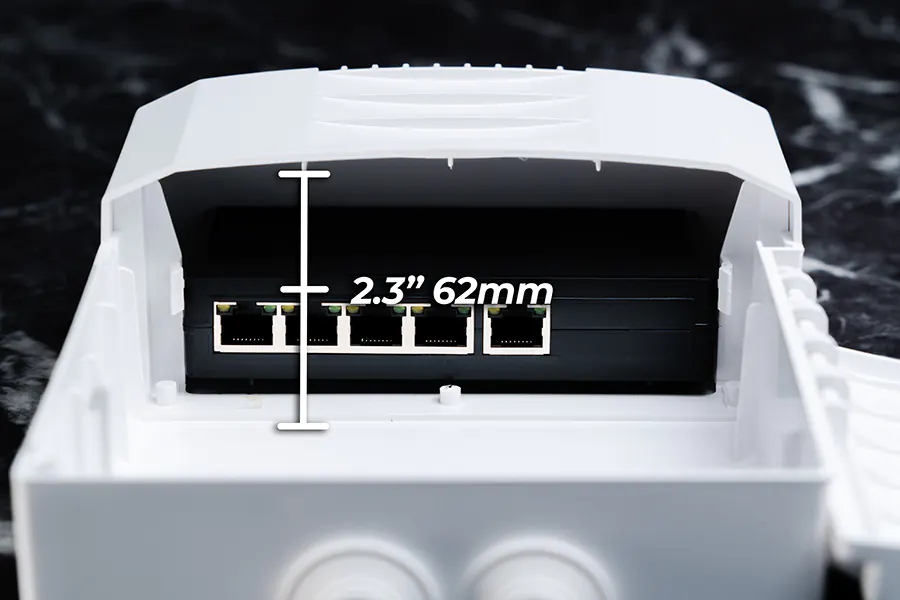

Inside dimensions of PW2020-4TENC-EC with measurement showing 62mm of height internally.
