RE6100P-XX-X

RE6100P-KR-Z

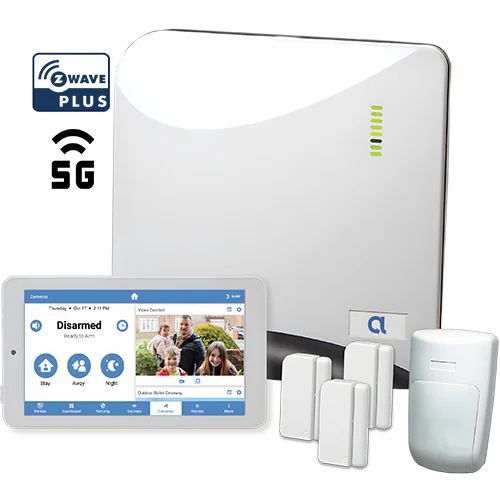

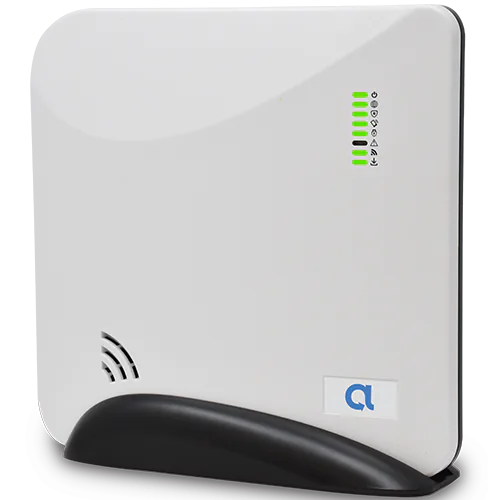

Alula Connect+ Hub, Supports up to 96 Wireless Sensors, Built-in Battery Backup, Ethernet, Wi-Fi (via WPS), and LTE connectivity, Z-Wave Support

Login for pricing
Category: Tags: ,

Description

Features – Alula Connect+ Panel

  • Cellular, Wi-Fi, or Ethernet communication channels
  • Control from a user’s mobile device
  • Industry-leading wireless range
  • Up to 49 users
  • Up to 96 zones
  • 2-way voice communication with RE6130ITEMS



Alula Connect+ Panel with Ethernet
Pre-installed with the following cards:

  • LTE 4G/5G
  • ZWave
  • Wireless Touch Screen Transceiver

Specification

PHYSICAL
Housing Body Dimensions

Housing Base Dimensions

Weight with Battery

Mounting Fastener

 8.9 x 8.9 x 1.5 inches (22.6 x 22.6 x 3.8 cm)

8.2 x 1.3 x 2.7 inches (20.8 x 3.3 x 6.7 cm)

26.8 ounces (760 grams)

#6 or #8 screws (not provided)
ENVIRONMENTAL
Operating Temperature

Storage Temperature

Maximum Humidity

 32 to 120 °F (0 to 49 °C)

-4 to 86 °F (-20 to 30 °C)

85% non-condensing relative humidity
PANEL SPECIFICATIONS
Radio Frequencies

Power Supply Part Number

Input

Output

Battery Part Number

Backup

Specifications

Battery Charger

Current Draw (RE6100, RE6110, RE6120)

Current Draw (RE6130P-XW-X)

Current Draw (RE6130P-LX-X)

Tamper Indications

Sensors

Interface Devices

Maximum Number of Users

Siren

 433.92MHz, 2.4GHz

RE012-6 (US), RE012-7 (AUS), RE012-8 (CE)

100-240VAC, 50/60 Hz, 0.5A

12VDC, 1A

RE029

24 hours minimum (4 hours minimum for RE6130)

6VDC, 2.5Ah, NiMH

25mA (Trickle), 95mA (Fast)

150mA (Normal), 300mA (Alarm)

250mA (Normal), 400mA (Alarm)

150mA (Normal), 400mA (Alarm)

Cover opening and Wall removal

Up to 96 Connect+ Compatible Wireless Security Zones

Up to 8 PINPads (RE652), up to 8 keypads (RE656) and/or mobile

devices, up to 4 Touchpads

49

Meet/exceed UL required 85dBA at 10 feet performance requirements
CERTIFICATIONS
RE6100

RE6100P-XX-X-AU

RE6120

RE6130P-XW-X

RE6130P-LX-X

 UL1023, UL985, UL1635, UL1610, ORD-C1023-1974, ULC S304,

ULC-S545-M89, ETL, FCC, IC, CSFM

EN 60950-1, EN 300 220, EN 301 489, RCM

EN50131-3, EN 60950-1, EN 300 220, EN 301 489, CE

UL1023, UL1635, ORD-C1023-1974, ETL, FCC, IC

UL1023, UL985, UL1635, ORD-C1023-1974, ULC-S545-M89, ETL, FCC, IC
