RE610P

RE610P

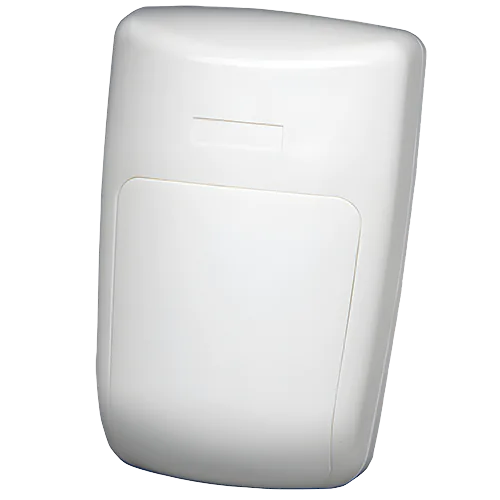

Wireless PIR Motion Sensor, 3M Tape + Screw Mounting, Pet Immune, ~6 Year Battery Life

Login for pricing
Category: Tags: ,

Description

Features – RIP Motion Sensor, Connect+™ Compatible

  • Narrow angle detection
  • Detection range adjustability
  • IP 55 rated weatherproof enclosure
  • 5-year warranty

Specification

Physical
Housing Dimensions

Weight with Battery

Mounting Fastener

 3.50 x 2.40 x 1.70 inches (8.9 x 6.1 x 4.3 cm)

3.2 ounces (91 grams)

3M VHB (Very High Bond) Tape or Screws (both provided)
Environmental
Operating Temperature

Maximum Humidity

 32 to 120 °F (0 to 49 °C)

85% non-condensing relative humidity
Sensor Specifications
Frequency

Pet Immunity

Replacement Battery

Nominal Battery Life

Battery Voltage

Current Draw

Optimal Mounting Height

Transmitted Indications

 433.92 MHz

Two 60-pound dogs or one 85-pound dog

One Panasonic CR132A

6 to 8 years

3.0 VDC (Nominal), 2.2 VDC (Low)

30 mA (Maximum), 20 uA (Quiescent)

7.5 to 9.5 feet (2.3 to 3.0 m)

Cover Tamper, Low Battery, Supervision
Certification
RE610 P

RE610P-CE

 UL639, ULC-S309-03, ETL, FCC, IC

EN 50131-2-2, EN 60950-1, EN 300 220, EN 301 489,

CE Security Grade 1, CE Environmental Class 2, RCM
