RE622

RE622

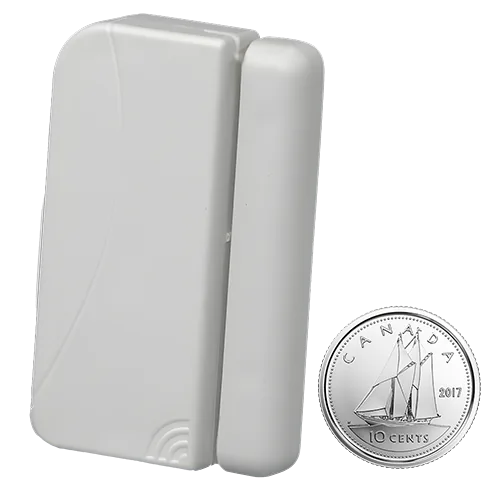

NanoMax Wireless Door/Windows Contact, Very Low-Profile, ~6 Year Battery Life

Login for pricing
Category: Tags: ,

Description

Features – RE622 NanoMax™ Door/Window Sensor, Connect+™ Encrypted

  • Quick peel and press mounting
  • Small profile for a near invisible look
  • Most flexible magnet positioning in the industry
  • Strip & Stick external contact holes
  • 5 year warranty

Specification

Physical
Housing Dimensions

Weight with Battery

Mounting Fastener

 1.80 x 0.77 x 0.39 inches (4.6 x 2.0 x 1.0 cm)

0.53 ounces (15 grams)

3M VHB Tape
Environmental
Operating Temperature

Maximum Humidity

 32 to 120 °F (0 to 49 °C)

85% non-condensing relative humidity
Sensor Specifications
Frequency

Replacement Battery

Nominal Battery Life

Battery Voltage

Current Draw

Transmitted Indications

 433.92 MHz

One Panasonic CR1632

6 years

3.0 VDC (Nominal), 2.62VDC (Low)

20 mA (Maximum), 0.5uA (Quiescent)

Cover Tamper, Low Battery, Supervision
Certifications
RE622

RE622-CE

 UL634, ULC634, ETL, FCC, IC

EN 60950-1, EN 300 220, EN 301 489, CE, RCM

Download
