RG-ES210GS-P
This is a managed 10-port switch, of which eight ports support PoE+. It can be managed through the Ruijie Reyee app and supports advanced features such as IP camera recognition, loop prevention, and 250m extended transmission. Additionally, one of the ports is a combo SFP/RJ45 port, giving you flexibility to connect your network using a fiber optic cable.
Description
The RG-ES210GS-P is a 10-port managed switch designed for small business or home networks. You can manage the device using the Ruijie Reyee app on smartphone – allowing you to reboot individual ports and configure advanced settings. This switch has automatic loop detection and prevention, 250m long-range PoE, and VLAN configuration. It also supplies PoE+ (IEEE 802.3at / IEEE 802.3af) on eight of the ports, allowing you to easily power security cameras or wireless access points.

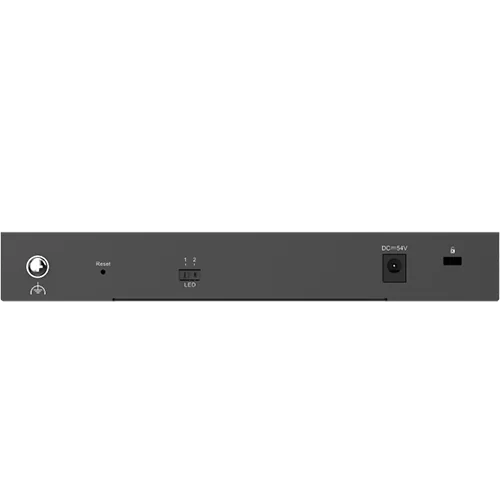

It can be wall mounted using the slots on the bottom of the device. The fanless design ensures peace and quiet even while mounted under a desk.
Highlight Features

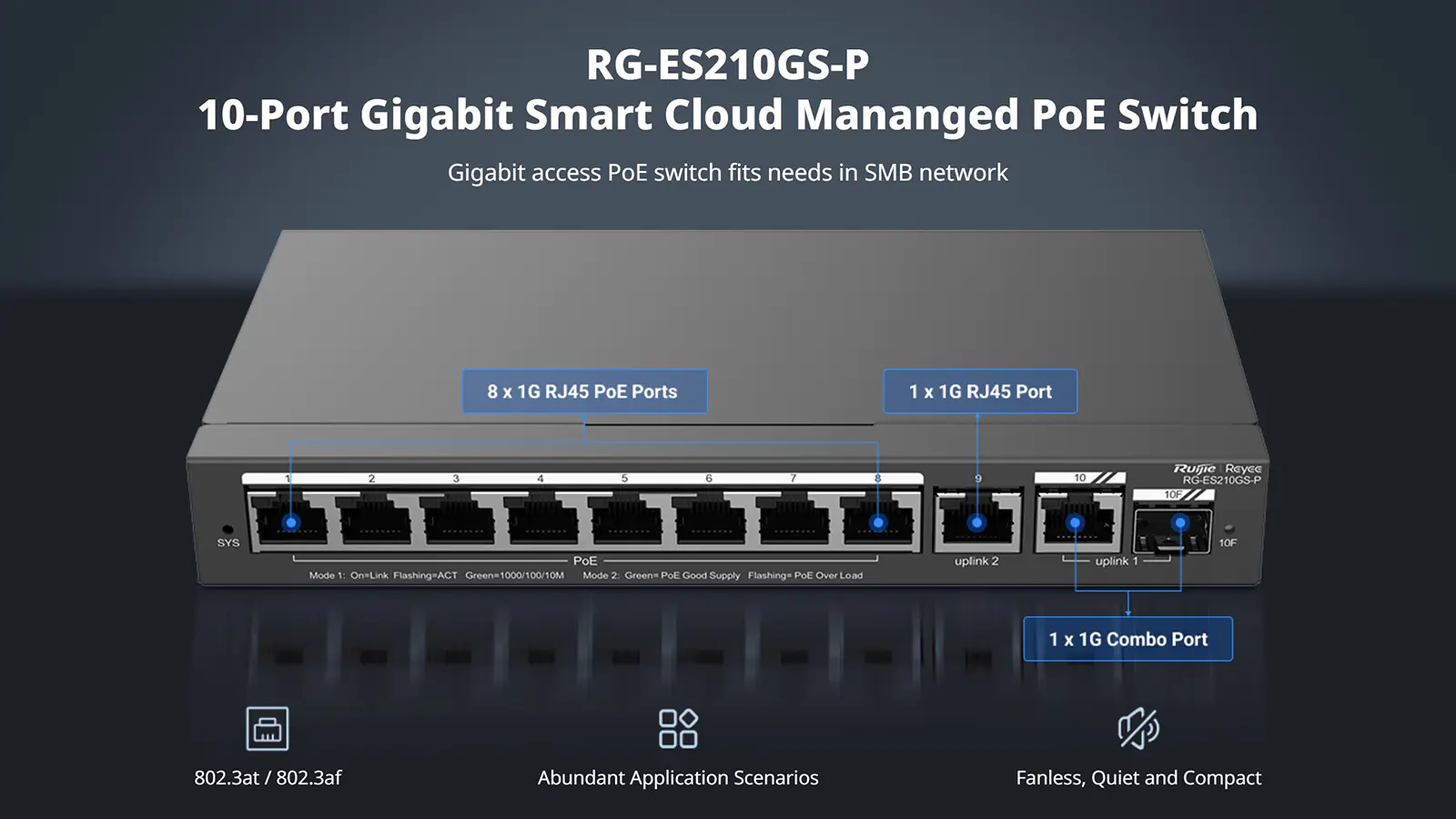

- 10-Port gigabit cloud managed switch with 8 PoE+ ports, 1 Combo Port
- Cost-Effective Smart Cloud Managed Switches
- IP Camera Recognition, Unique Value for CCTV Network
- Automatic Loop Prevention Ensures Service Continuity
- Lifetime management on Ruijie Cloud at anytime anywhere
Specification
| RG-ES210GS-P | |
| Ports | 10 x 10/100/1000Base-T, 8 x PoE+ ports, 1 x SFP Gigabit ports |
| Switching Capacity | 20 Gbps |
| MAC Address Table | 4000 |
| Fan | Fanless |
| Dimensions (W x D x H) | 202 mm x 108 mm x 28 mm |
| MTBF | ~200,000 hours |
| PoE | 120W power budget (IEEE 802.3at/802.3af) |
| Fowarding Rate | 14.8 Mpps |
| Max VLANs | Up to 16 VLANs |
| Port Surge Protection | 6 kilovolts |
| Weight (including packaging) | 1.38kg (3 lbs) |
| Warranty | 3 Years |
Download
- Datasheet of RG-ES210GS-P Series Cloud-Managed PoE Switch
