RG-RAP1260
This is a Wi-Fi 6 wall-plate access point that supports speeds up to 2976 Mbps. It has one RJ45 port on the back for input and four RJ45 outputs for connecting to nearby devices. It also supports Reyee Mesh for a seamless roaming experience and can be managed through remotely through the Ruijie Cloud.
Description

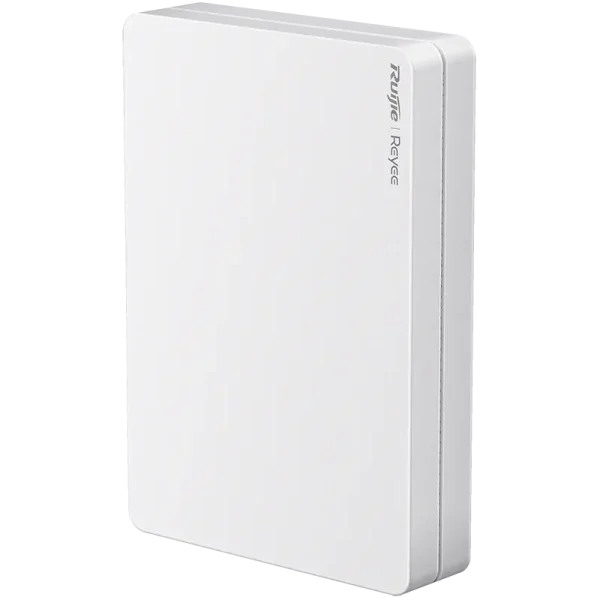

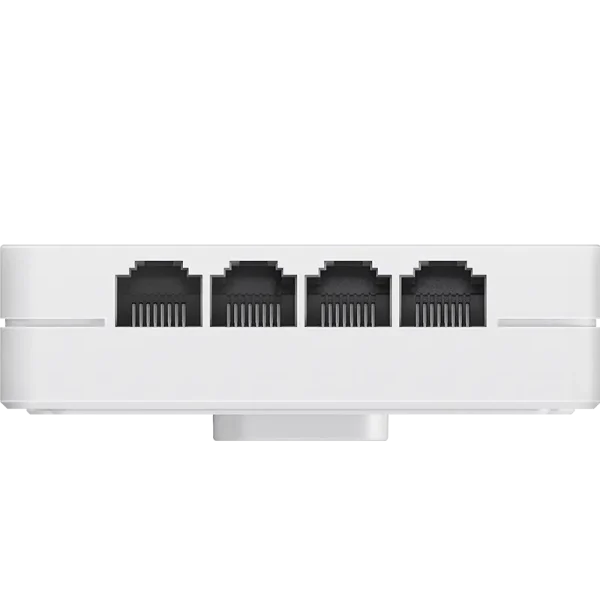

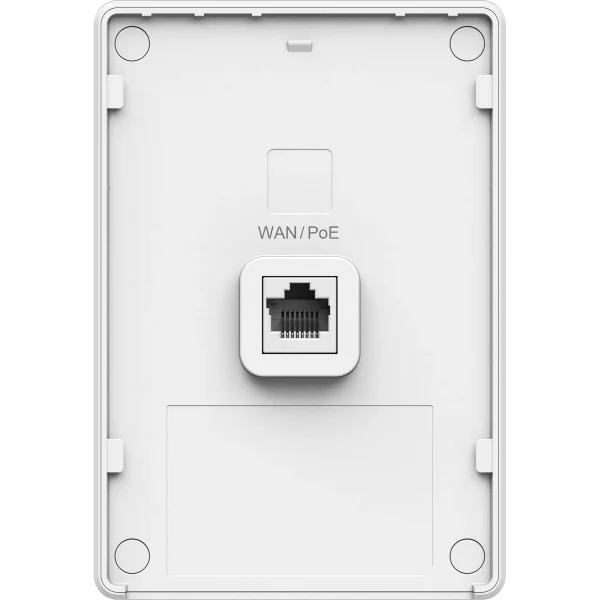

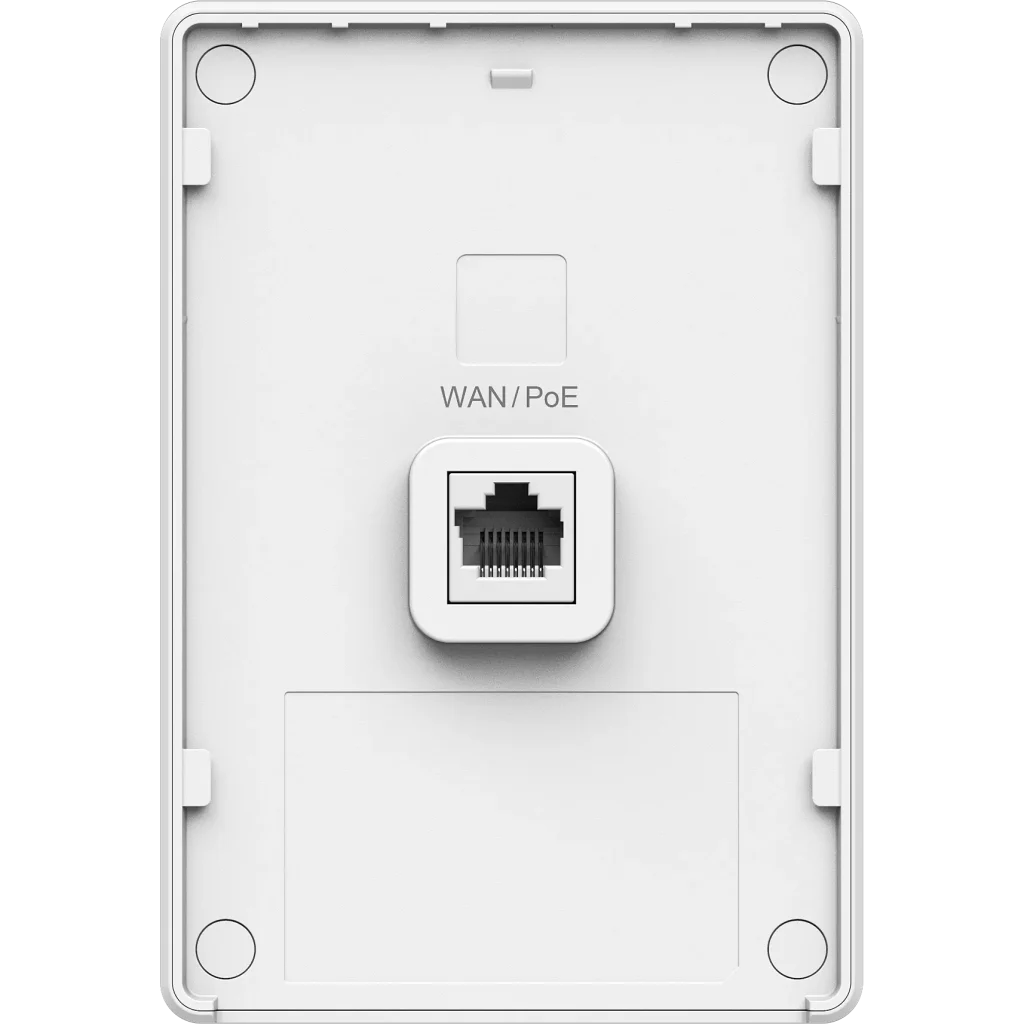

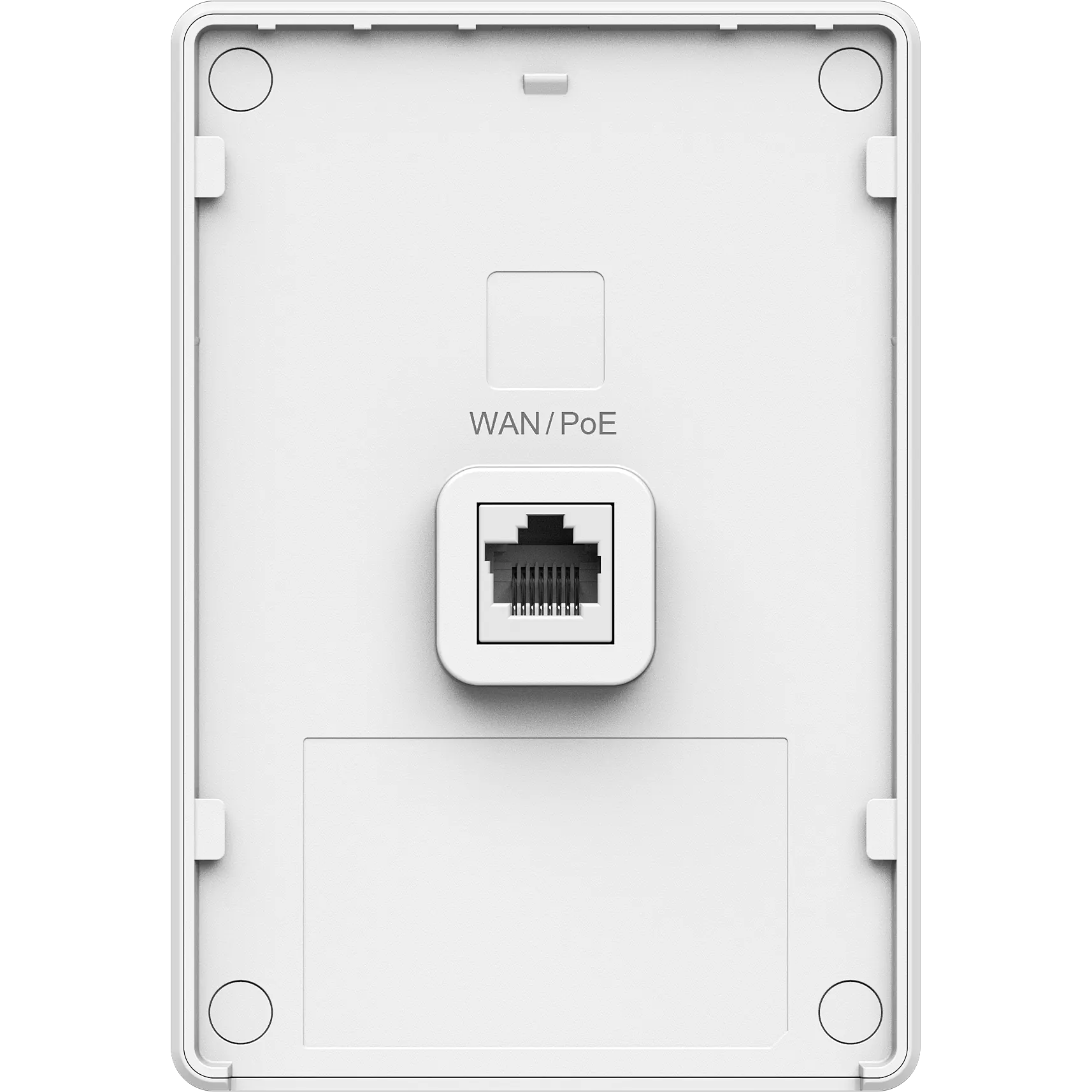

This is a tiny Wi-Fi 6 AP, measuring just 4.8″ x 3.4″ x 0.9″ – perfect for adding Wi-Fi to a small office or home without taking up a lot of space. It’s designed to be installed on a wall, since there is a gigabit port on the back for data and power. There are also four gigabit (non-PoE) RJ45 ports on the bottom of the unit for connecting to a computer, video game console, or smart TV.
The RG-RAP1260 supports Reyee’s mesh Wi-Fi for a seamless roaming experience across a large area. You can also manage this device through the Ruijie cloud portal through your web browser or via the Ruijie Reyee App.
With blazing fast network speeds up to 2976 Mbps and support for up to 512 clients (110 recommended), this compact AP will keep you and your clients happy.
Specification
| RG-RAP1260 | |
| Wireless Protocol | 802.11ax (Wi-Fi 6), 2.97Gbps |
| Network Port | 5 x 100/1000/1000 Base-T |
| Antenna | High gain 3dBi omni-directional antenna |
| MIMO | 2×2 @2.4 GHz, 2×2 @5 GHz |
| Maximum / Recommended Clients | Up to 512 clients / Recommended up to 110 clients |
| Operating Temperature | 0°C to 40°C |
| Dimensions | 124 mm x 86 mm x 24 mm (4.88 in. x 3.89 in. x 0.94 in.) |
| Weight | 0.5 kg (1.10 lbs) |
| Power Supply | 802.3AF/at PoE |
| Power Consumption | <12 watts |
| Certifications | CE, ROHS, UKCA, EAC |
| Warranty | 3 Years |
Download
- User Manual for Reyee RAP1260 Wi-Fi 6 wall-mounted AP (all languages)
- Hardware Installation Guide of the RG-RAP1260 AP
- Datasheet of RG-RAP1260 Indoor Wall Access Point
