RG-RAP2260

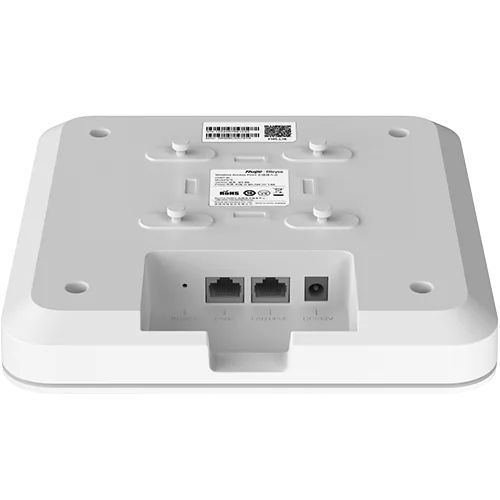

This is an indoor, ceiling-mounted Wi-Fi 6 AP, designed for high-density (up to 512 clients) and ultra-fast network speeds up to 2.97 Gbps. It can be configured through the Ruijie Reyee app by scanning the QR code on the back of the device.
Description
The RG-RAP2260 is an indoor Wi-Fi 6 access point with a 2.5 Gigabit uplink port. It supports ultra-fast Wi-Fi up to 2.97 Gbps – the high-gain antennas ensure maximum coverage of your home or office. It receives power via PoE+, making it easy to connect to an existing PoE switch. It does not come with a power adapter – you are expected to have PoE existing in your network.
You can manage this access point by downloading the Ruijie Reyee app on your smartphone and scanning the QR code on the back of the device. It also supports Reyee’s WiFi Mesh, allowing you to expand your wireless network without needing the second AP to connect directly to your network. The second AP will connect wirelessly with the first AP, bridging the network and saving on cable costs.
Highlight Features
- Ultra-high performance Wi-Fi with 2.97 Gbps throughput.
- 500+ client connections, with better multi-user experience.
- Internet access with 2.5 Gbps uplink for the future.
- Easy installation of an extra AP with Reyee Mesh Technology.
- Standalone captive portal, easy to enable Wi-Fi authentication.
Specification
| RG-RAP2260 | |
| Wireless Protocol | 802.11ax (Wi-Fi 6), 2.97Gbps |
| Network Port | 1 x 100/1000/2500 Base-T, 1 x 10/100/1000 Base-T |
| Antenna | High gain 3dBi omni-directional antenna |
| MIMO | 2×2 @2.4 GHz, 2×2 @5 GHz |
| Maximum / Recommended Clients | Up to 512 clients / Recommended up to 110 clients |
| Operating Temperature | 0°C to 40°C |
| Dimensions | 194 mm x 194 mm x 45.1 mm |
| Weight | 0.65 kg (excluding mounting kits) |
| Power Supply | 802.3at PoE, 12V/2A DC Adaptor |
| Power Consumption | <18 watts |
| Certifications | CE, ROHS, UKCA, EAC |
| Warranty | 3 Years |
Download
- User Manual for Reyee Wi-Fi 6 indoor access point
- Hardware Installation Guide of the RG-RAP2260 AP
- Datasheet of RG-RAP2260 Indoor Ceiling Access Point
