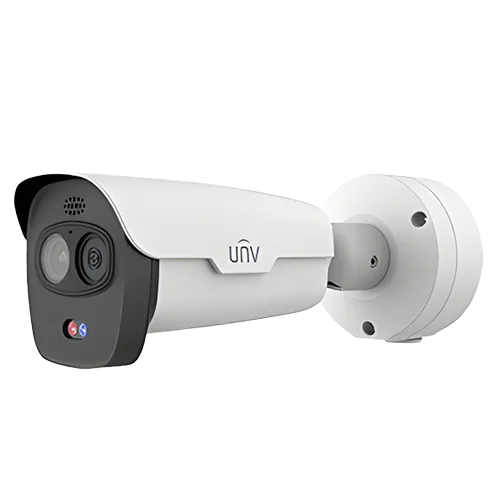

TIC2621SR-F3-4F4AC-VD

TIC2621SR-F3-4F4AC-VD

4MP Dual-spectrum Thermal Camera, IR up to 50m, 256*192 Vanadium Oxide Sensor, Built-in Mic + Speaker, Fixed 4.0mm lens

Login for pricing
Category: Tags: , , , ,

Description

Features – 4MP Dual-spectrum Thermal Network Bullet Camera

  • Thermal & Optical dual-spectrum image, dual video with single IP address, adaptable to more various scenes
  • 1/1.8“ target surface, high sensitivity sensor, satisfy the need of starlight monitoring
  • Support reliable fire detection, smoking detection and fire shield area
  • Thermal module supports temperature detection and cold&hot spot tracking which highlights the abnormal temperature, and link to alarm
  • Thermal & Optical dual-spectrum smart intrusion prevention: cross line, enter area, leave area, intrusion
  • Support picture-in-picture mode, real-time contrast live, more convenient and clear
  • Support audio and light alarm, with red and blue warning lights built in
  • Ultra 265, H.265, H.264, MJPEG
  • Triple streams
  • Max 2688*1520@30fps in the optical module and Max 720P@30fps in the thermal module
  • DC12V±25% or PoE power supply
  • Alarm 2 in and 2 out, Audio 1 in and 1 out, Micro SD, up to 256 GB

Specification

TIC2621SR-F3-4F4AC-VD
Thermal Module
Sensor type Vanadium Oxide Uncooled Focal Plane Arrays
Original Resolution 256*192
Field of View(H*V) 57.0°~42.0°
Video Resolution 720P(1280*720), Max 30fps
Response waveband 8~14μm
Pixel size 12μm
IFOV 3.75mrad
NETD ≤55mk @f/1.0 @25°C
Lens(focal length) 3.2mm@F1.1
Palette Up to 20 palettes of optional color, including: white hot, lava, iron oxide red, hot iron, medical, arctic, rainbow 1, rainbow 2, rainbow 3, depict hot, ice hot, black hot, mazarine, fusion, red hot, green hot, color 1, color 2, rain, puce
Detection Distance Vehicle: 316m (target size 4mx1.4m); human: 126m (target size 1.8mx0.5m);
Recognition Distance Vehicle: 79m (target size: 4mx1.4m); human: 32m (target size: 1.8mx0.5m);
Identification Distance Vehicle: 45m (target size: 4mx1.4m); human: 18m (target size: 1.8mx0.5m);
Optical Module
Sensor 1/1.8″, 4.0 megapixel, progressive scan, CMOS
Lens 4mm@F1.6
Iris Fixed aperture
DORI Distance Lens（mm） Detect (m) Observe (m) Recognize (m) Identify (m)
4 62.1(203.6ft) 24.8(81.5ft) 12.4(40.7ft) 6.2(20.4ft)
Field of View(H*V) 89.9°~49.1°
Video Resolution 4MP(2688*1520), Max 30fps
Shutter Auto/Manual, 1 ~ 1/100000s
Min. Illumination Colour:0.001lux (F1.6, AGC ON)
B/W: 0.0005lux(F1.6,AGC ON)
0 lux with IR
WDR 120dB
Day/Night IR-cut filter with auto switch (ICR)
IR Range Up to 50m (164 ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
BLC Supported
Smart (thermal module )
Fire Detection Support the detection of fire point in the environment and up to 10 fire points can be detected
Smoking Detection Support the detection of smoking in the environment and link to alarm
Temperature detection Support area detection, and link to alarm, the temperature value can be added to the alarm picture
Support cold&hot point tracking, timely and clearly shows the abnormal point
Up to 12 rules can be set
Temperature range:  -20°C ~+150°C
Temperature accuracy:  Max (±8°C/±8%)
Smart intrusion prevention Support false alarm filtering: Line crossing detection, Intrusion detection, Enter Area, Leave Area
Support motor vehicle and pedestrian detection capture and plan arming
Smart (optical module )
Exception Detection Object left behind detection, Object removed detection, Scene Change Detection
Smart intrusion prevention Support false alarm filtering: Line crossing detection, Intrusion detection, Enter Area, Leave Area
Support motor vehicle, non-motor vehicle and pedestrian detection capture and plan arming
Event
Audio and light alarm Support audio and light warning function, with red and blue warning lights built in
Basic Detection optical module :Motion detection, Audio detection, Tampering alarm
thermal module : Audio detection
General Function Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Video
Compression Ultra265, H.265, H.264, MJPEG
Video Stream Triple streams
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas per scene
Audio
Audio Compression G.711U,G.711A
Two-way audio Supported, Built in mic and speaker
Sampling Rate 8kHZ
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS,
Compatible Integration ONVIF (Profile S, Profile G, Profile T)
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Interface
Audio I/O 1/1
Alarm I/O 2/2
Serial Port 1 RS485
Network 1 x RJ45 10M/100M Base-TX Ethernet
General
Power DC12V(±25%), PoE(IEEE802.3af)
Power consumption: Max 12W
Support reverse polarity protection, Overvoltage and overcurrent protection , Input short circuit protection
Dimensions (Ø x H) Φ354mm x 104mm x 116mm(Φ13.9” x 4.1” x 4.6”)
Weight 1.85kg(4.08lb)
Temperature detection  working environment -10°C ~+50°C(-14°F ~ 122°F) , Humidity: ≤95% RH (non-condensing)
Working Environment -40℃~70℃(-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Ingress Protection IP67
Vandal Resistant N/A
