TIC3612SA-F3-4F4AC-I1
This Uniview 4MP + 1.3MP Dual-spectrum turret camera is able to record both visible and infrared light. You can use this camera to detect overheating equipment before a fire breaks out! The powerful speaker and flashing lights allows this camera to signal a warning to people nearby. This makes it suitable for computer rooms, warehouses, and electric vehicle chargers.
Description
This thermal camera has a 4.0mm optical and 3.0mm thermal lens. It’s designed to cover a wide angle with a 60 – 70° field of view. It can detect events such as: Temperature anomalies (above or below a threshold), fire detection, and smoking Detection
This makes it perfect for monitoring sensitive electronics within a server room or network cabinet. You can also use it to monitor an EV charger, giving you an early warning when the temperature gets dangerously high.
Lastly, this camera can be used to monitor for intrusion in complete darkness, as it will pick up the infrared radiation coming from a person’s body.

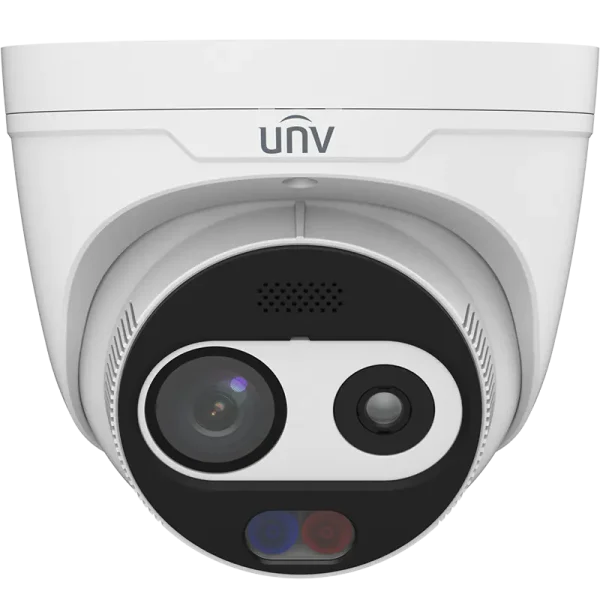

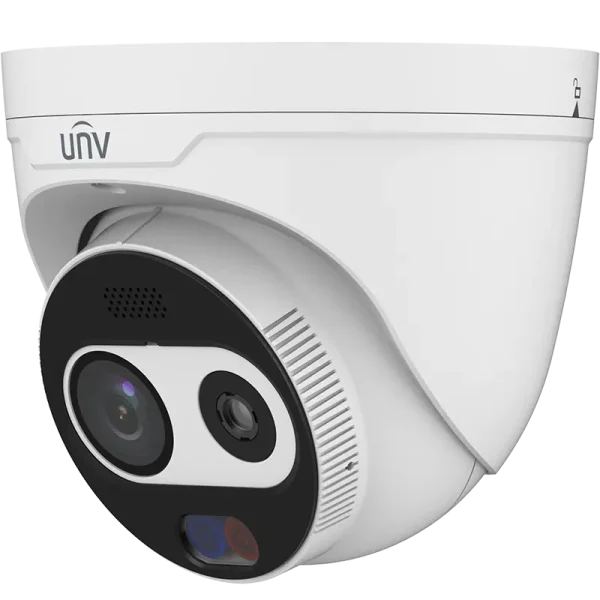

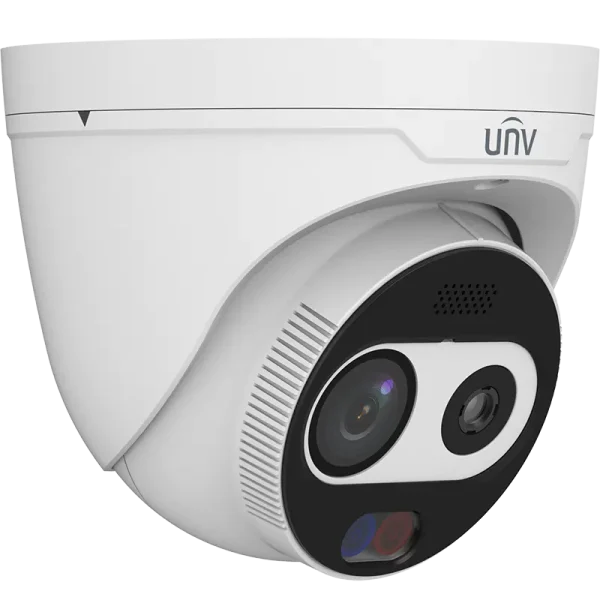

4MP Thermal & Optical Dual-spectrum Turret Network Camera
- Thermal & Optical dual spectrum image, dual video with single IP address, adaptable to more various scenes
- 1/2.8″ target surface, high sensitivity sensor, satisfy the need of starlight monitoring
- Thermal module support reliable fire detection, smoking detection and fire shield area
- Thermal module supports temperature detection and cold & hot spot tracking which highlights the abnormal temperature, and link to alarm
- Thermal & Optical dual spectrum smart intrusion prevention: cross line, enter area, leave area, intrusion
- Optical module supports smog recognition, which can help with fire alarm reconfirm
- Support picture in picture mode, real time contrast live, more convenient and clear
- Support audio and light alarm, with red and blue warning lights built in
- Ultra 265, H.265, H.264, MJPEG
- Max 2688*1520@30fps in the optical module and Max 960P@30fps in the thermal module
- DC12V±25% or PoE power supply
- Alarm 2 in and 2 out, Audio 1 in and 1 out, Micro SD, up to 512 GB
Specification
| TIC3612SA-F3-4F4AC-I1 | ||||||||
| Channel | Thermal | Optical | ||||||
| Camera | ||||||||
| Sensor | Vanadium Oxide Uncooled Focal Plane Arrays | 1/2.8″ CMOS | ||||||
| Min. Illumination | N/A | Colour: 0.003 lux (F1.6, AGC ON) B/W: 0.002lux(F1.6,AGC ON) 0 lux with IR |
||||||
| Day/Night | N/A | IR-cut filter with auto switch (ICR) | ||||||
| Original Resolution-Thermal | 256*192 | N/A | ||||||
| Pixel Size | 12 um | N/A | ||||||
| NETD | < 50 mk @ F1.0 @ 25 ℃ | N/A | ||||||
| Shutter | Auto/Manual,1 to 1/100000 s | Auto/Manual,1 to 1/100000 s | ||||||
| WDR | 120 dB | 120 dB | ||||||
| S/N | >56 dB | >56 dB | ||||||
| Lens | ||||||||
| Focal Length | 3 mm | 4mm | ||||||
| Iris | F1.0 | F1.6 | ||||||
| Field of View (H) | 58.0° | 72.9° | ||||||
| Field of View (V) | 42.5° | 44.4° | ||||||
| Field of View (D) | 72° | 89.8° | ||||||
| DORI | ||||||||
| DORI Distance (Detect) | N/A | 90.0m(295.3ft) | ||||||
| DORI Distance (Observe) | N/A | 36.0m(118.1ft) | ||||||
| DORI Distance (Recognize) | N/A | 18.0m(59.1ft) | ||||||
| DORI Distance (Identify) | N/A | 9.0m(29.5ft) | ||||||
| Illuminator | ||||||||
| Wavelength | N/A | 750 nm | ||||||
| Illumination Distance (IR) | N/A | 30m | ||||||
| Light On/Off Control | N/A | Auto/Manual | ||||||
| Video | ||||||||
| Frame Rate | 960P(1280*960), Max 30fps | 4MP(2688*1520), Max 30fps | ||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | Ultra 265, H.265, H.264, MJPEG | ||||||
| Video Bit Rate | 128 Kbps to 16 Mbps | 128 Kbps to 16 Mbps | ||||||
| U-code | Support | Support | ||||||
| ROI | Support | Support | ||||||
| Video Stream | Triple Streams | Triple Streams | ||||||
| OSD | Up to 8 OSDs | Up to 8 OSDs | ||||||
| Privacy Mask | N/A | Up to 8 areas (8 blacks/ 8 mosaics) | ||||||
| Image | ||||||||
| White Balance | N/A | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | ||||||
| Digital Noise Reduction | 2D/3D DNR | 2D/3D DNR | ||||||
| Flip | Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise | Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise | ||||||
| HLC | N/A | Support | ||||||
| BLC | N/A | Support | ||||||
| Defog | N/A | Digital Defog | ||||||
| Palette-Thermal | white hot, lava, iron oxide red, hot iron, medical, arctic, rainbow 1, rainbow 2, rainbow 3, depict hot, ice hot, black hot, mazarine, fusion, red hot, green hot, color 1, color 2, rain, puce | N/A | ||||||
| Intelligent | ||||||||
| Smart Intrusion Prevention | Cross line detection, Intrusion detection, Enter area detection, Leave area detection (support false alarm filtering and the classification of human and vehicle) | Cross line detection, Intrusion detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | ||||||
| Smoke and Fire Detection | N/A | Support | ||||||
| Temperature Measurement Accuracy | ±8 ℃ (±14.4 ℉) or ±8% (whichever is greater) | |||||||
| Temperature Range | Selectable between -20 ℃ to 150 ℃ (-4 ℉ to 302 ℉) and 100 ℃ to 550 ℃ (212 ℉ to 1022 ℉) | |||||||
| Temperature Detection-Thermal | Thermal channel supports rule-based temperature measurements.Supports real-time display of the highest, lowest, and average temperatures in the rule-defined area on the screen | N/A | ||||||
| Smoking Detection-Thermal | Thermal channel supports the detection of smoking behavior in the environment | N/A | ||||||
| Events | ||||||||
| Fire Detection | Support | N/A | ||||||
| Basic Detection | N/A | Motion Detection, Tampering Alarm, Audio Detection | ||||||
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output | ||||||
| Audio | ||||||||
| Audio Compression | G.711U, G.711A | G.711U, G.711A | ||||||
| Audio Bitrate | 128 Kbps | 128 Kbps | ||||||
| Two-way Audio | Support | Support | ||||||
| Suppression | Support | Support | ||||||
| Sampling Rate | 16KHZ | 16KHZ | ||||||
| Storage | ||||||||
| Edge Storage | Micro SD, up to 512 GB | Micro SD, up to 512 GB | ||||||
| Network Storage | ANR | ANR | ||||||
| Network | ||||||||
| Protocols | IGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH | IGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH | ||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | ONVIF (Profile S, Profile G, Profile T), API, SDK | ||||||
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | Up to 32 users. 3 user levels: administrator, common user and operator | ||||||
| Client | EZStation, UNV-Link, UNV-Link Pro | EZStation, UNV-Link, UNV-Link Pro | ||||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||||
| Interface | ||||||||
| Built-in Mic | Support | Support | ||||||
| Built-in Speaker | Support | Support | ||||||
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] | ||||||
| Alarm I/O | 2/2 | 2/2 | ||||||
| Serial Port | 1 channel RS485 interface | 1 channel RS485 interface | ||||||
| Network | 1 × RJ45 10M/100M Base-TX Ethernet | 1 × RJ45 10M/100M Base-TX Ethernet | ||||||
| Video Output | 1 BNC (For debugging) | N/A | ||||||
| Certification | ||||||||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 50130-4:2011+A1:2014) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 50130-4:2011+A1:2014) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
||||||
| Safety | CE LVD (EN IEC 62368-1:2020+A11:2020) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
CE LVD (EN IEC 62368-1:2020+A11:2020) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | ||||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) | ||||||
| General | ||||||||
| Power | DC12V(±25%), PoE(IEEE802.3af) | DC12V(±25%), PoE(IEEE802.3af) | ||||||
| Power Consumption | Max 12W | Max 12W | ||||||
| Power Interface | Ø5.5 mm coaxial power plug | Ø5.5 mm coaxial power plug | ||||||
| Dimensions | Φ129 x 114 mm(Φ5.08″ x 4.49″)(Φ x H) | Φ129 x 114 mm(Φ5.08″ x 4.49″)(Φ x H) | ||||||
| Weight | 0.72kg(1.6lb) | 0.72kg(1.6lb) | ||||||
| Working Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | ||||||
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | ||||||
| Surge Protection | 6 KV | 6 KV | ||||||
| Reset Button | Support | Support | ||||||
| RTC | Support | Support | ||||||
| Web Client Language | 1 Language English |
1 Language English |
||||||
| Live View | ||||||||
| Maximum Bitstream | 35 | 35 | ||||||
| Maximum Bandwidth | 50 Mbps | 50 Mbps | ||||||
| OSD Font | Vector | Vector | ||||||
| OSD Color | Support | Support | ||||||
| OSD Character Number | 40 | 40 | ||||||
| Other | ||||||||
| Corridor Mode | Support | Support | ||||||
| Software Version | Q6202 | Q6202 | ||||||
