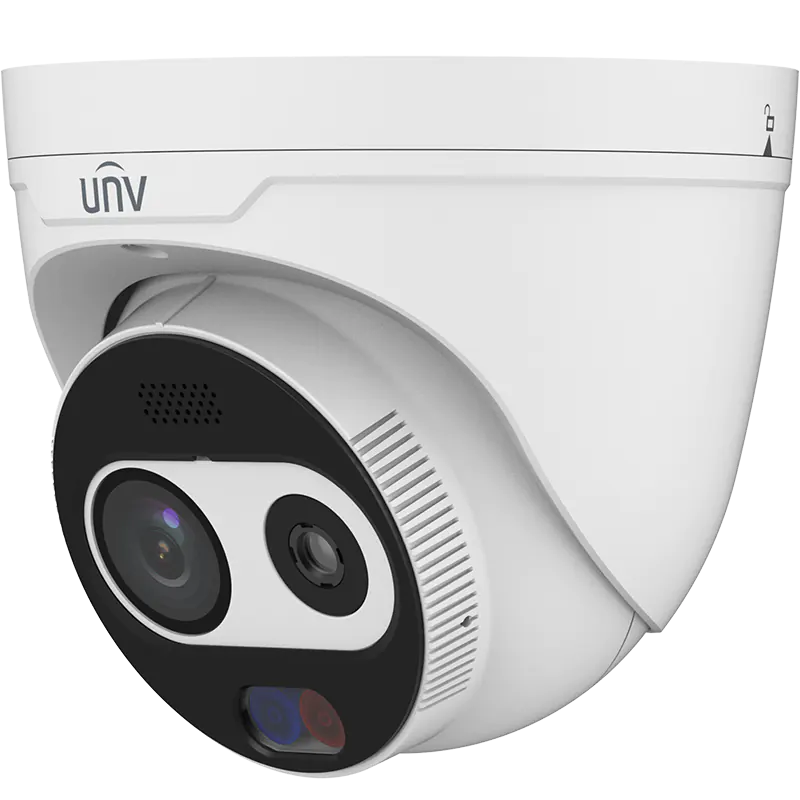

A Uniview turret camera with thermal and visible light sensors, front right

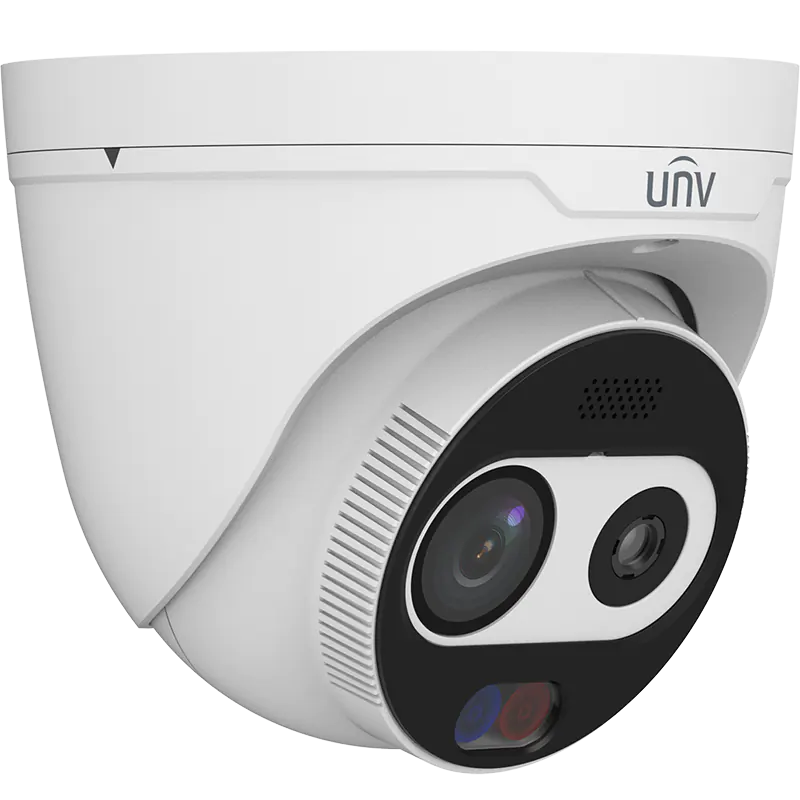

A Uniview turret camera with thermal and visible light sensors, front left

TIC3612SA-F7-4F6AC-I1

This Uniview 4MP + 1.3MP Dual-spectrum turret camera is able to record both visible and infrared light. You can use this camera to detect overheating equipment before a fire breaks out! The powerful speaker and flashing lights allows this camera to signal a warning to people nearby. This makes it suitable for computer rooms, warehouses, and electric vehicle chargers.

Login for pricing
Category: Tags: , , , ,

Description

This thermal camera has a 6.0mm optical and 7.0mm thermal lens. It’s designed to cover a wide angle with a 20 – 30° field of view. It can detect events such as: Temperature anomalies (above or below a threshold), fire detection, and smoking Detection

This makes it perfect for monitoring sensitive electronics within a server room or network cabinet. You can also use it to monitor an EV charger, giving you an early warning when the temperature gets dangerously high.

Lastly, this camera can be used to monitor for intrusion in complete darkness, as it will pick up the infrared radiation coming from a person’s body.

4MP Thermal & Optical Dual-spectrum Turret Network Camera

  • Thermal & Optical dual spectrum image, dual video with single IP address, adaptable to more various scenes
  • 1/2.8″ target surface, high sensitivity sensor, satisfy the need of starlight monitoring
  • Thermal module support reliable fire detection, smoking detection and fire shield area
  • Thermal module supports temperature detection and cold & hot spot tracking which highlights the abnormal temperature, and link to alarm
  • Thermal & Optical dual spectrum smart intrusion prevention: cross line, enter area, leave area, intrusion
  • Optical module supports smog recognition, which can help with fire alarm reconfirm
  • Support picture in picture mode, real time contrast live, more convenient and clear
  • Support audio and light alarm, with red and blue warning lights built in
  • Ultra 265, H.265, H.264, MJPEG
  • Max 2688*1520@30fps in the optical module and Max 960P@30fps in the thermal module
  • DC12V±25% or PoE power supply
  • Alarm 2 in and 2 out, Audio 1 in and 1 out, Micro SD, up to 512 GB

Specification

TIC3612SA-F7-4F6AC-I1
Channel Optical Thermal
Camera
Sensor 1/2.8″ CMOS Vanadium oxide uncooled focal plane arrays
Min. Illumination Colour: 0.003 lux (F1.6, AGC ON)
B/W: 0.002lux(F1.6,AGC ON)
0 lux with IR		 N/A
Day/Night IR-cut filter with auto switch (ICR) N/A
Original Resolution-Thermal N/A 256*192
NETD N/A < 50 mk @ F1.0 @ 25 ℃
Shutter Auto/Manual,1 to 1/100000 s Auto/Manual,1 to 1/100000 s
WDR 120 dB 120 dB
S/N >56 dB >56 dB
Lens
Focal Length 6.0 mm 7.0 mm
Iris F1.6 F1.0
Field of View (H) 49.1° 25.2°
Field of View (V) 26.9° 19.3°
Field of View (D) 60.4° 31°
DORI
DORI Distance (Detect) 135.0m(442.9ft) N/A
DORI Distance (Observe) 54.0m(177.2ft) N/A
DORI Distance (Recognize) 27.0m(88.6ft) N/A
DORI Distance (Identify) 13.5m(44.3ft) N/A
Illuminator
Wavelength 750 nm N/A
Illumination Distance (IR) 30m N/A
Light On/Off Control Auto/Manual N/A
Video
Frame Rate 4MP(2688*1520), Max 30fps 960P(1280*960), Max 30fps
Video Compression Ultra 265, H.265, H.264, MJPEG Ultra 265, H.265, H.264, MJPEG
Video Bit Rate 128 Kbps to 16 Mbps 128 Kbps to 16 Mbps
U-code Support Support
ROI Support Support
Video Stream Triple Streams Triple Streams
OSD Up to 8 OSDs Up to 8 OSDs
Privacy Mask Up to 8 areas (8 blacks/ 8 mosaics) N/A
Digital Noise Reduction 2D/3D DNR 2D/3D DNR
Defog Digital Defog N/A
Palette-Thermal N/A white hot, lava, iron oxide red, hot iron, medical, arctic, rainbow 1, rainbow 2, rainbow 3, depict hot, ice hot, black hot, mazarine, fusion, red hot, green hot, color 1, color 2, rain, puce
Intelligent
Smart Intrusion Prevention Cross line detection, intrusion detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) Cross line detection, intrusion detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
Smoke and Fire Detection Support N/A
Temperature Measurement Accuracy ±8 ℃ (±14.4 ℉) or ±8% (whichever is greater)
Temperature Range Selectable between -20 ℃ to 150 ℃ (-4 ℉ to 302 ℉) and 100 ℃ to 550 ℃ (212 ℉ to 1022 ℉)
Temperature Detection-Thermal N/A Thermal channel supports rule-based temperature measurements.Supports real-time display of the highest, lowest, and average temperatures in the rule-defined area on the screen
Smoking Detection-Thermal N/A Thermal channel supports the detection of smoking behavior in the environment
Events
Fire Detection N/A Support
Basic Detection Motion Detection, Tampering Alarm, Audio Detection N/A
General Function Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output
Audio
Audio Compression G.711U, G.711A G.711U, G.711A
Audio Bitrate 128 Kbps 128 Kbps
Two-way Audio Support Support
Suppression Support Support
Sampling Rate 16KHZ 16KHZ
Storage
Edge Storage Micro SD, up to 512 GB Micro SD, up to 512 GB
Network Storage ANR ANR
Network
Protocols IGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH IGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API, SDK ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host Up to 32 users. 3 user levels: administrator, common user and operator Up to 32 users. 3 user levels: administrator, common user and operator
Client EZStation, UNV-Link, UNV-Link Pro EZStation, UNV-Link, UNV-Link Pro
Web Browser Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Interface
Built-in Mic Support Support
Built-in Speaker Support Support
Audio I/O 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm I/O 2/2 2/2
Serial Port 1 channel RS485 interface 1 channel RS485 interface
Network 1 × RJ45 10 M/100 M Base-TX Ethernet 1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output N/A 1 BNC (For debugging)
General
Power DC12V(±25%), PoE(IEEE802.3af) DC12V(±25%), PoE(IEEE802.3af)
Power Consumption Max 12W Max 12W
Power Interface Ø5.5 mm coaxial power plug Ø5.5 mm coaxial power plug
Dimensions Φ129 x 114 mm(Φ5.08″ x 4.49″)(Φ x H) Φ129 x 114 mm(Φ5.08″ x 4.49″)(Φ x H)
Weight 0.72kg(1.6lb) 0.72kg(1.6lb)
Working Environment -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection 6 KV 6 KV
Reset Button Support Support
RTC Support Support
Certification
Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
Live View
Maximum Bitstream 35 35
Maximum Bandwidth 50 Mbps 50 Mbps
OSD Font Vector Vector
OSD Color Support Support
OSD Character Number 40 40
Other
Corridor Mode Support Support
