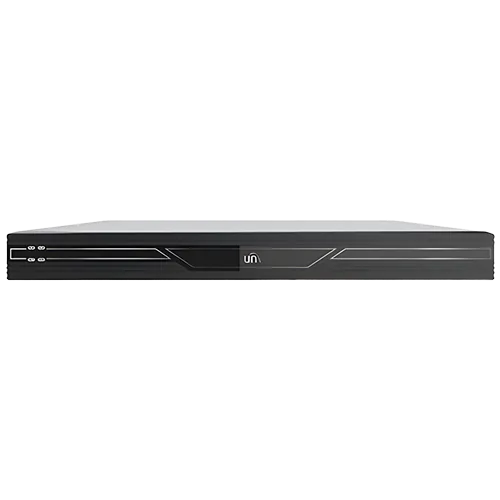

VMS-B180-A
Unified Management Unit for controlling up to 250 devices or 500 IP channels, 1xHDMI/VGA w/Independent Layouts | 24/8 Alarm In/Out | Four NIC | Up to 12MP
Description
Features – Video Management System
- Connection: Connect and manage 250 devices, 500 video channels.
- Management: Unified management of IPC, NVR, decoder, network keyboard, alarm controller, access controller, cloud devices.
- Bandwidth: 512Mbps input bandwidth, 384Mbps output bandwidth.
- Compatibility: Support standard Onvif and RTSP.
- Service: Live view, playback, sequence, video wall, GIS map, two-way audio, alarm-triggered actions, access control management.
- Access: Browser/Server, Client/Server and mobile clients (both iOS and Android).
- Smart: Multiple smart functions including cross line detection, intrusion detection, face detection, LPR, mixed traffic detection, people counting, behavior search, and alarms and reports.
- Stability and reliability: Linux OS, 802.1x authentication, ARP protection, HTTPS, Telnet enabling/disabling, network fault tolerance, load balancing, multi-IP configuration, secure password, and IP address filtering.
- Operation and maintenance: Provide a comprehensive management dashboard, server status, device/channel online/offline status, HDD status, online users, bandwidth usage, packet loss rate, log query.
- Interfaces: 4 x 1000Mbps Ethernet interfaces, 24 alarm inputs, 8 alarm outputs, 4 x USB 3.0, 1 HDMI and 1 VGA
Specification
| Item | VMS-B180-A | |
| Management | Video | 250 devices, 500 channels |
| Human/vehicle | Can receive 100 vehicle or face images per second. Note: The number of devices supported depends on the number of images sent from the devices per second. For example, if each device sends 1 image per second, then the server can connect 100 devices. If each device sends 5 images per second, then the server can connect 20 devices. |
|
| Decoding | Video | H.265, H.264 |
| Resolution | 12MP/ 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080P/ 960P/ 720P/ 960H/ D1/ 2CIF/ CIF/ QCIF | |
| Output (local client) | Independent output to HDMI and VGA HDMI supports 4K resolution |
|
| Audio | G.711A, G.711μ | |
| Input Bandwidth | 512Mbps | |
| Output Bandwidth | 384Mbps | |
| User Management | 50 online users | |
| Device Management | IPC, NVR, face recognition terminal, decoder, network keyboard, smart devices, alarm controller, access controller, and cloud devices. | |
| Play Control | 1 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 13 / 16 / 17 / 25 / 32 / 36 / 64 window display Corridor format Up to 3 auxiliary monitors |
|
| Playback | Play NVR recordings 16-ch synchronous playback Speed: -256, -128, -64, -32, -16, -8, -4, -2, -1, 1/4, 1/2, 1, 2, 4, 8, 16, 32, 64, 128, 256 |
|
| Data Info | Alarm Records | 200,000 |
| Operation logs | 200,000 | |
| Face capture records | 3 million | |
| Face alarm records | 3 million | |
| Vehicle pass-through records | 3 million | |
| Structured motor vehicle, non-motor vehicle and pedestrian records | 3 million | |
| Access control entry/exit records | 3 million | |
| External Interface | Network | 4 × 10M/100M/1000M Base-T adaptive Ethernet interfaces |
| USB | 4 × USB3.0 | |
| Serial | 1 × RS232 (RJ45), 1 × RS485 (RJ45) | |
| Alarm input/output | 24 alarm inputs, 8 alarm outputs | |
| Power output | 12V DC | |
| Power | 100-240V AC, with power switch | |
| Others | Power consumption | ≤ 40W |
| Operating temperature | -10°C to 55°C (14°F to 131°F) | |
| Operating humidity | 10%-90% (noncondensing) | |
| Weight | ≤ 4.1 Kg (without HDD) | |
| Dimensions (D×W×H) |
Height: 1U 400mm x 346mm x 48mm(17.3″×13.6″×1.9″) |
|
