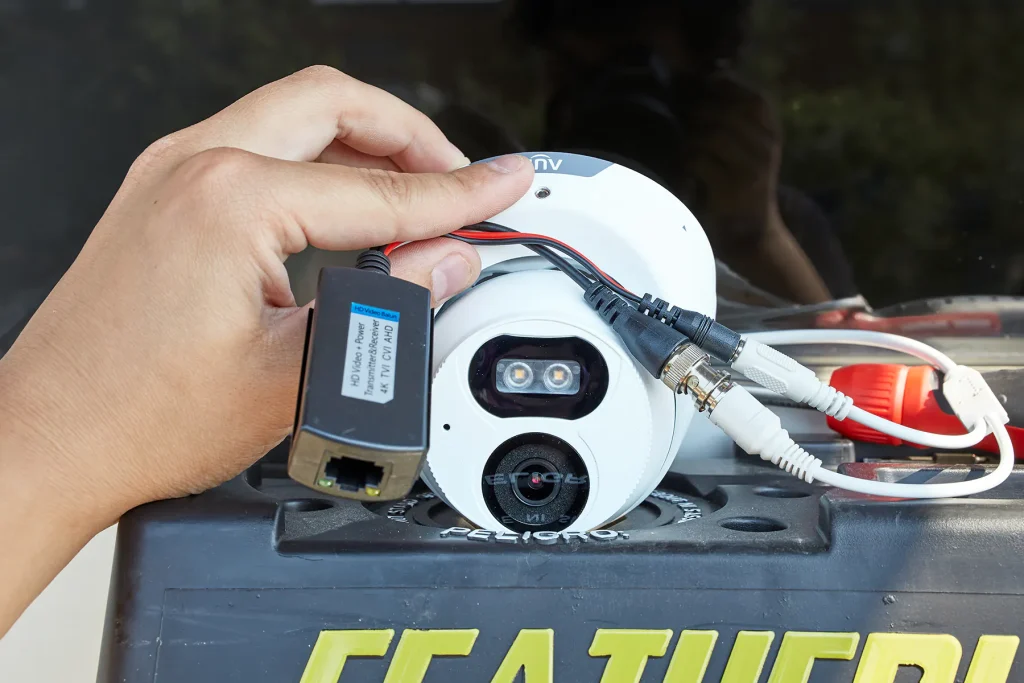

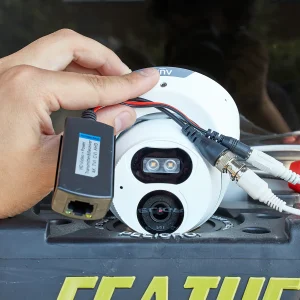

Installing a TVI security camera using a video balun with RJ45 port

XLR-ACC-BLN5-HD

Pair of HD Video Baluns with 6” BNC Male to RJ-45 Connector, up to 250M Transmission, DC Male & DC Female Power Connections

Category: Tag:

Description

This video balun has an RJ45 ethernet port, which allows you to carry both power and data over a single Cat5e / Cat6 wire. Comes in a pair, with one side meant to be connected near the DVR, and another near the security camera.

Features

  • Transmission: 300M (720p & 960H), 250M (1080p)
  • Compatible with TVI, CVI, AHD & 960H Format
  • 6” BNC Male to RJ-45 Connector
  • DC Male & DC Female Power Connections
  • Built-in ESD, EFT & Transient Voltgage Protection
  • Interlocking Design

Specification

Connections Video: RJ-45 to BNC Male
Power: 12VDC Male to 12VDC Female
Video Signal 1Vp-p, 75 Ohms
Bandwidth 50Hz ~ 60MHz (-3dB)
Transmission Distance Video: 300M (720p & 960H) 250M (1080p)
ESD Protection 30KV (Air), 15KV (Contact); IEC 61000-4-2 Compliant
Cable Type For Use with CAT5e/CAT6 UTP Cable
Power Type Supports 12VDC & 24VAC Power
EFT Protection 40A (5/50ns); IEC 61000-4-4 Compliant
Lightning Protection 2A (8/20μs); IEC 61000-4-5 Compliant
Surge Protection Attack Time <1nS
Dimensions 81mm x 20mm x 30mm (body) w/ 6″ BNC & Power Pigtails
Weight 0.2lb
