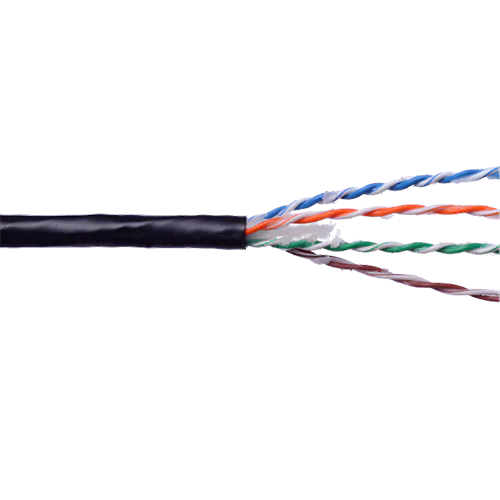

Outdoor direct burial cable with gel filled core, four twisted pairs

XLR-CAB-C5-OUTDOOR

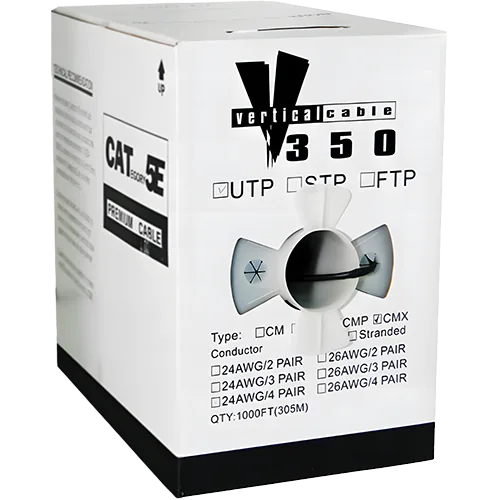

1000FT Cat5E Direct Burial Cable, Gel Filled (Flooded Core) and UV Resistant. Vertical Cable brand.

Category:

Description

Direct burial cable is a type of cable designed to withstand harsh environments, weather, and UV radiation. This cable has a gel-filled core to resist water intrusion and humidity.

Physical Characteristics

  • Conductor: 24 AWG Solid Bare Annealed Copper
  • Insulation: Premium Polyolefin (Low Smoke, Flame-Retardant & RoHS Compliant)
  • Conductor Color Code:
    Pair 1: Blue – White/Blue
    Pair 2: Orange – White/Orange
    Pair 3: Green – White/Green
    Pair 4: Brown – White/Brown
  • Rip Cord: Applied longitudinally under jacket
  • Flooding Compound:Water-Blocking Tape or Gel-Filled
  • Jacket: LLDPE (Sunlight-Resistant, Abrasion-Resistant & RoHS Compliant)
  • Nominal Cable Diameter (in): 0.213
  • Nominal Cable Net Weight (lbs/1000 ft): 23
  • Minimum Bend Radius (in): 3.0
  • Maximum Pulling Force (lbs): 25
  • Temperature Rating (°F):
    Installation: -4 to + 140
    Storage & Operation: -40 to + 140

Standard Compliances

  • ANSI/ TIA 568-C.2
  • ISO 11801 (Category 5e)
  • MIL-C-24640A Water Penetration Requirements
  • NEMA WC63.1 (Category 5e)
  • RoHS Compliant Directive 2011/65/EU

Electrical Characteristics

  • Max Capacitance (nF/100m @ 1 kHz): 5.6
  • Max DC Resistance (Ω/100m @ 68°F): 9.38
  • Max Delay Skew (ns/100m): 45
  • Nom Velocity of Propagation (%): 70
  • Characteristic Impedance ( Ω@ 1- 100 MHZ): 100±15
