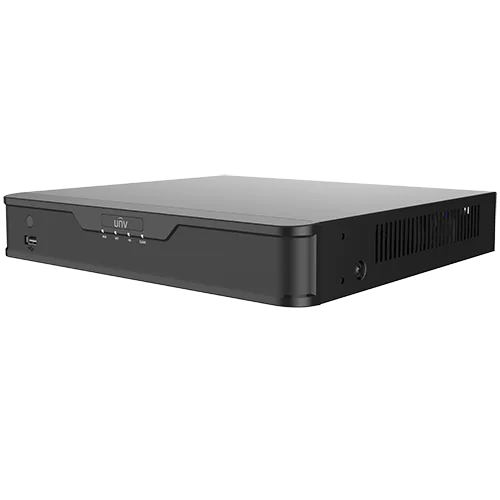

Uniview XVR302-08Q Hybrid Recorder up to 8ch Analog TVI CVI AHD 2 SATA Slots Front Right

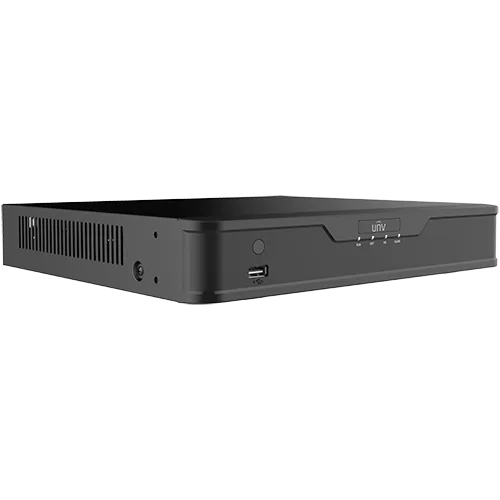

Uniview XVR302-08Q Hybrid Recorder up to 8ch Analog TVI CVI AHD 2 SATA Slots Front Left

XVR302-08Q

8 CH BNC + 4 IP | 2xSATA | H.265/H.264 | P2P | HDMI/VGA Output | Up to 5MP Lite

Category: Tags: ,

Description

Features – 8ch 2-SATA XVR

  • Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
  • Support audio over coaxial cable
  • 8-channel BNC input
  • Up to 4K resolution for recording
  • Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080
  • Long transmission distance over coaxial cable

Specification

Model XVR302-08Q XVR302-16Q
Video/Audio Input
Analog Video Input 8-ch, BNC 16-ch, BNC
IP Video Input 4-ch(only IP up to 12ch), each channel up to 4K 8-ch(only IP up to 24ch), each channel up to 4K
Supported Analog Camera Types Support AHD input: 8MP@15fps(channel1-channel2)
5MP@20fps
4MP@30fps
3MP@30fps(channel1-channel2)
1080P@30fps
720P@60fps
Support TVI input: 8MP@15fps(channel1-channel2)
5MP@20fps
4MP@30fps
3MP@20fps(channel1-channel2)
1080P@30fps
720P@60fps
Support CVI input: 8MP@15fps(channel1-channel2)
4MP@30fps
1080P@30fps
720P@60fps
Support CVBS input
Support AHD input: 8MP@15fps(channel1-channel4)
5MP@20fps
4MP@30fps
3MP@30fps(channel1-channel4)
1080P@30fps
720P@60fps
Support TVI input: 8MP@15fps(channel1-channel4)
5MP@20fps
4MP@30fps
3MP@20fps(channel1-channel4)
1080P@30fps
720P@60fps
Support CVI input: 8MP@15fps(channel1-channel4)
4MP@30fps
1080P@30fps
720P@60fps
Support CVBS input
Audio Input 1-ch, RCA
Two-way Audio 1-ch, RCA
Network
Incoming Bandwidth 56Mbps 72Mbps
Outgoing Bandwidth 64Mbps 80Mbps
Remote Users 128
Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
CVBS Output 1-ch, BNC
VGA Output 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
HDMI Output 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
Audio Output 1-ch, RCA
Synchronous Playback 8-ch 16-ch
Encoding
Recording Resolution 8MP Lite/5MP Lite/4MP Lite /3MP/1080P/960P/720P/960H/4CIF/CIF
Recording Frame Rate Main stream: 8MP Lite@8fps(channel1-channel2)
5MP Lite@12fps
4MP Lite@15fps
3MP@15fps(channel1-channel2)
2MP@15fps
720P@30fps
Sub stream: D1@30fps(Max)
Main stream: 8MP Lite@8fps(channel1-channel4)
5MP Lite@12fps
4MP Lite@15fps
3MP@15fps(channel1-channel4)
2MP@15fps
720P@30fps
Sub stream: D1@30fps(Max)
Hard Disk
SATA 2 SATA interfaces
Capacity up to 6TB for each HDD
External Interface
Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface 1 RJ45 10M/100M/1000M self-adaptive Ethernet Interface
USB Interface Rear panel: 1 x USB2.0, Front panel: 1xUSB2.0 Rear panel: 1 x USB3.0, Front panel: 1xUSB2.0
Serial Interface 1 x RS485
General
Power Supply 12V DC
Power Consumption: ≤ 8 W( without HDD )
12V DC
Power Consumption: ≤ 12 W( without HDD )
Working Environment -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions(W×D×H) 380mm ×315mm× 53mm (15″ × 12.4″×2.1″)
Weight ( without HDD ) ≤1.9 Kg ( 4.19lb )
